See how a roof-mounted exterior sprinkler system is planned, attached, and commissioned on a luxury home. Ten illustrated stages show the roof details and visible water patterns of this supplemental system.
Select any photo to view it larger.

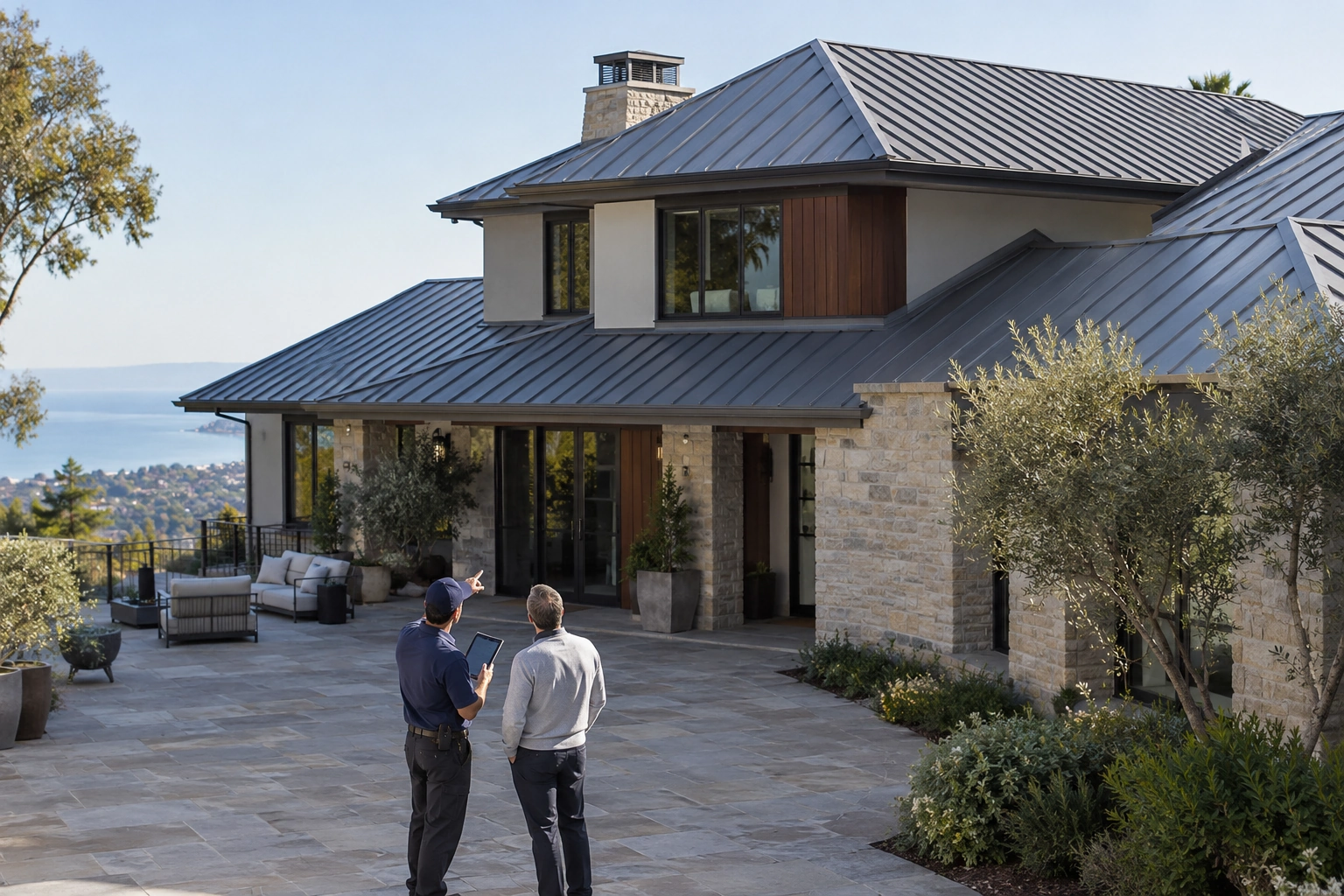

Roof faces, ridges, obstructions, access, and available water sources are reviewed before the system is designed. The proposed exterior sprinkler layout is coordinated with the home’s architecture and project requirements.

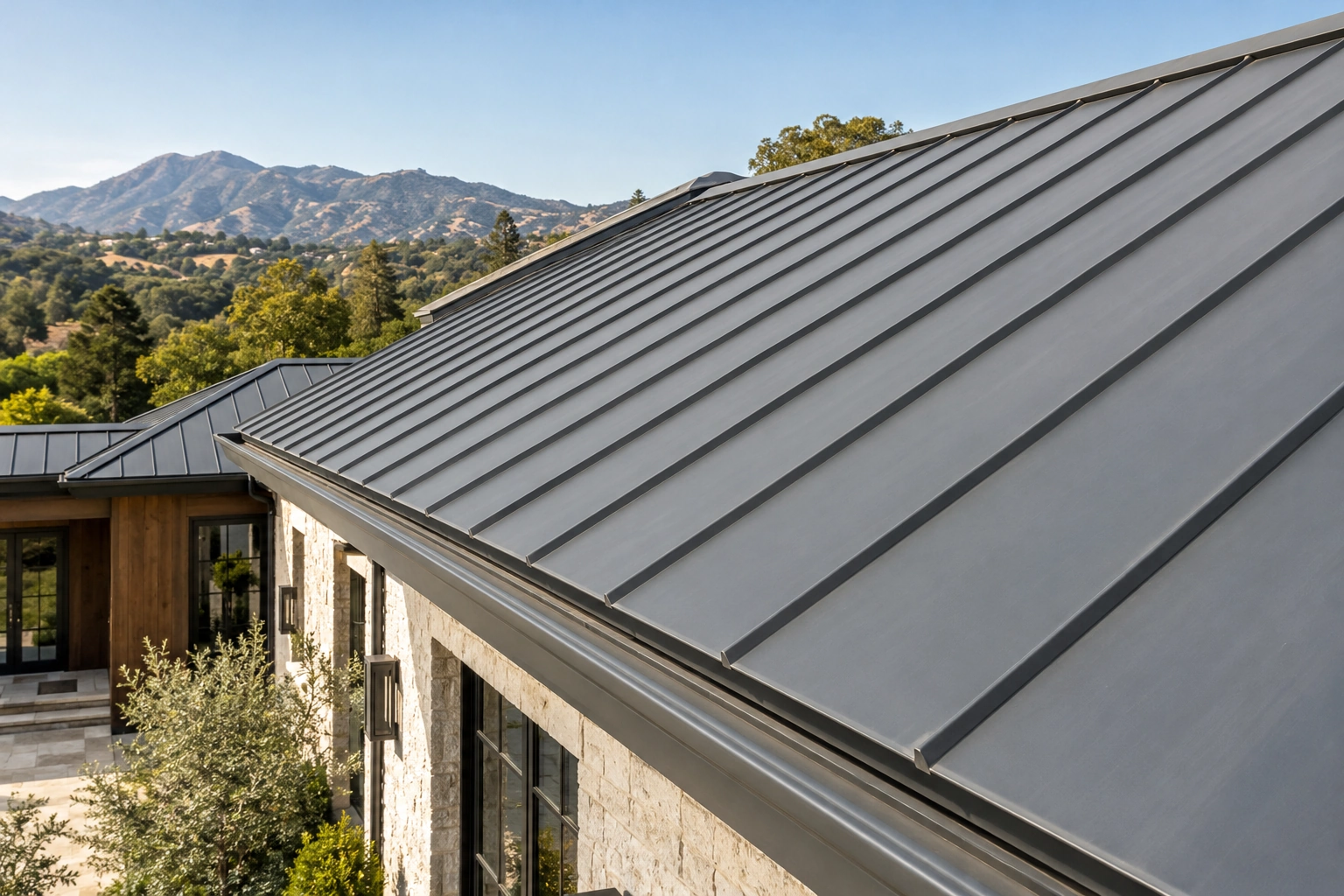

The roof covering, seam profile, drainage paths, and condition are checked before attachments are selected. The illustrated standing-seam roof is one installation example; other roof types require different details.

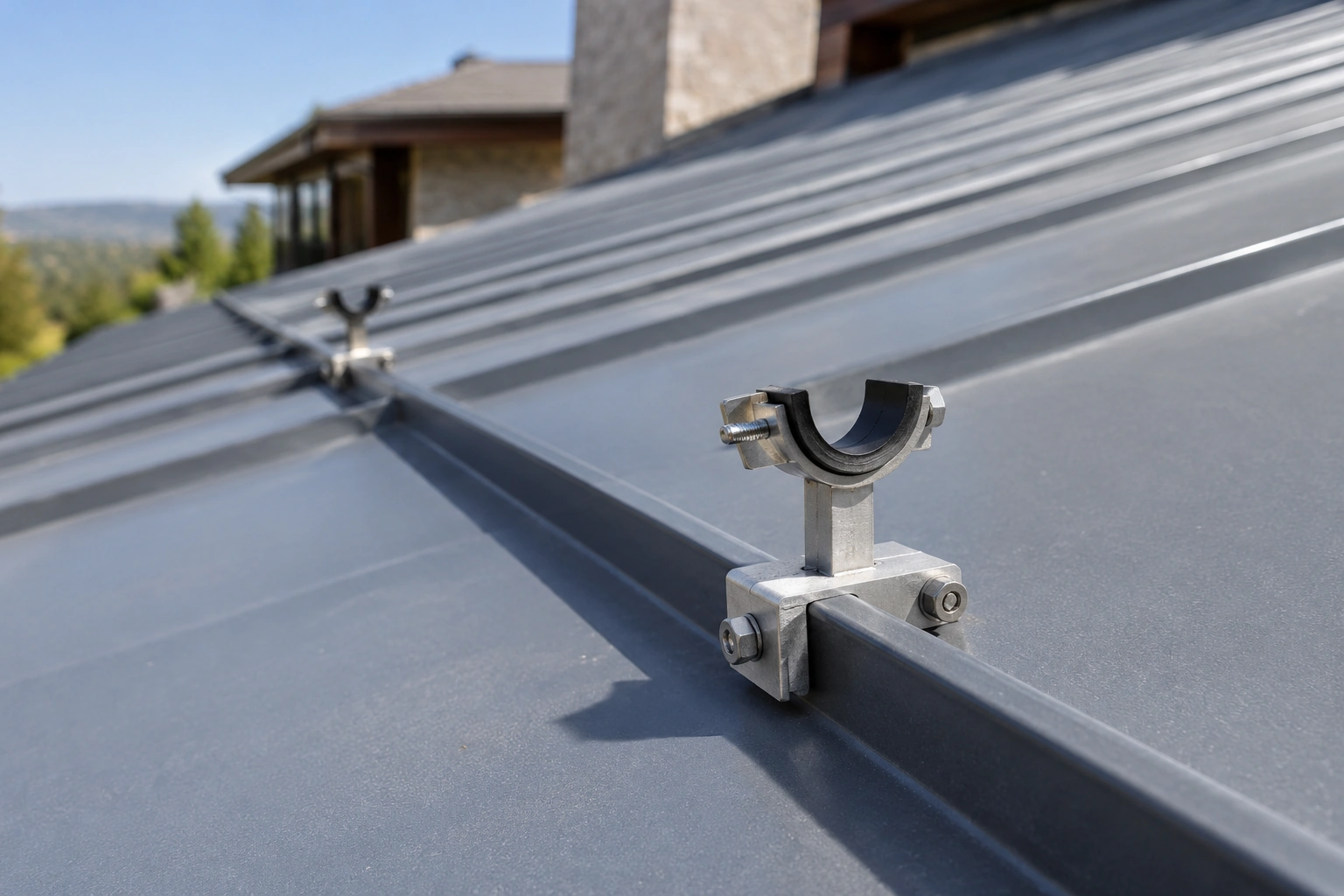

For a compatible standing-seam roof, purpose-selected seam clamps can support the installation without fastening through the broad roof panels. Mounts and standoffs are matched to the roof profile and the system loads.

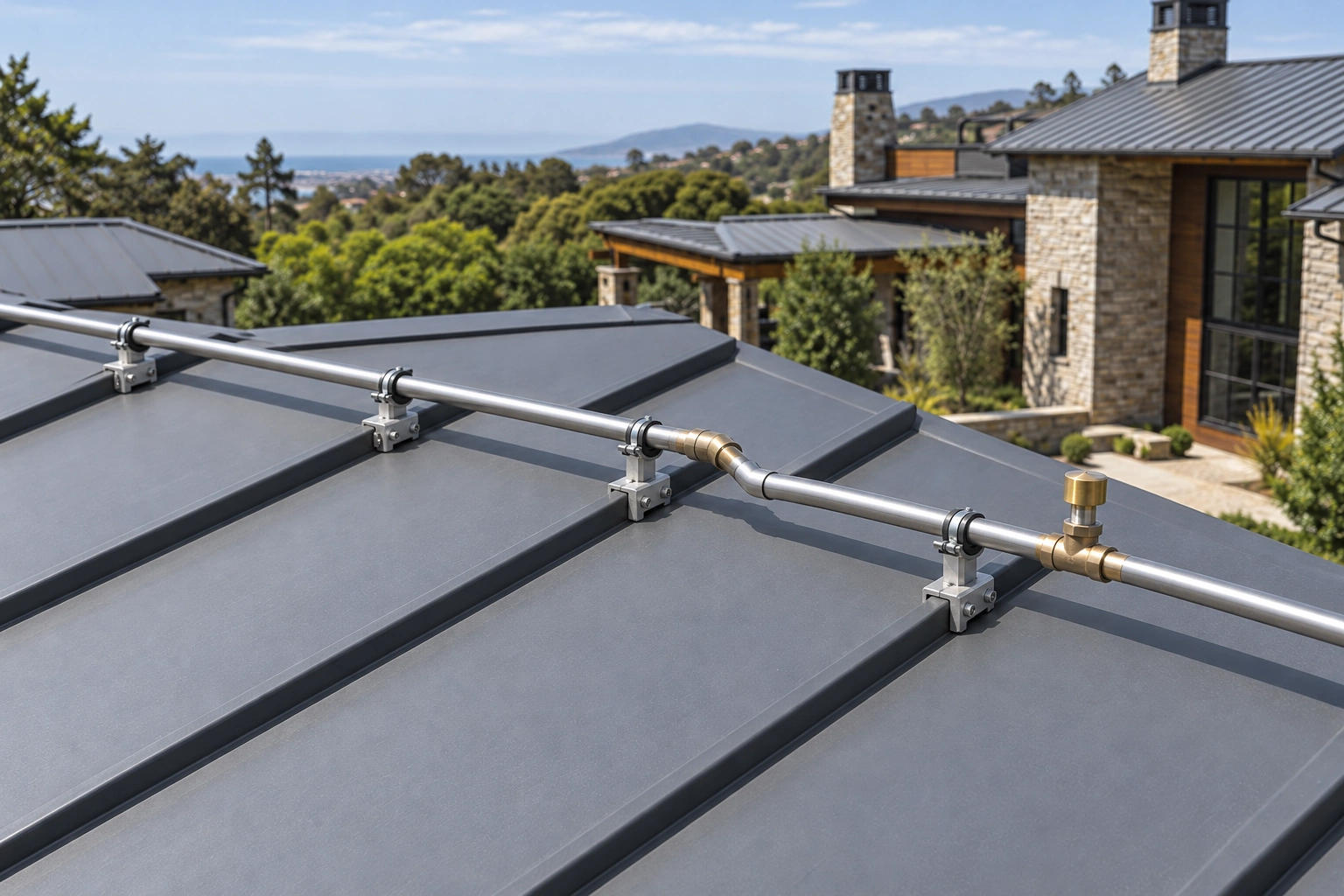

The roof supply line follows a planned route and is supported above the covering. Compatible saddles and fittings keep the installation organized while allowing for the requirements of the roof and piping materials.

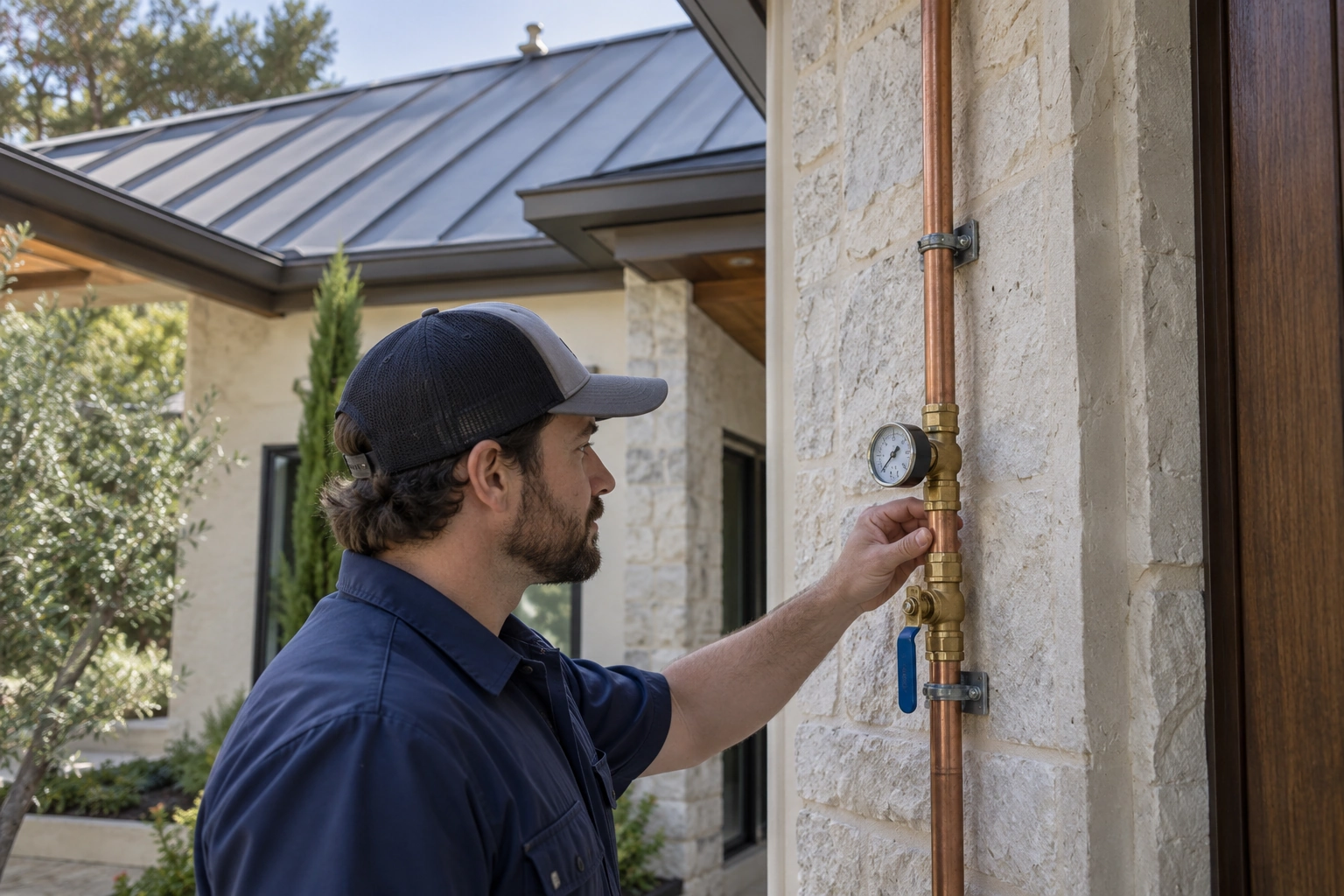

Available flow, operating pressure, and supply duration are evaluated for the proposed sprinkler demand. The connection is designed together with the required backflow protection and any project-specific storage or pumping.

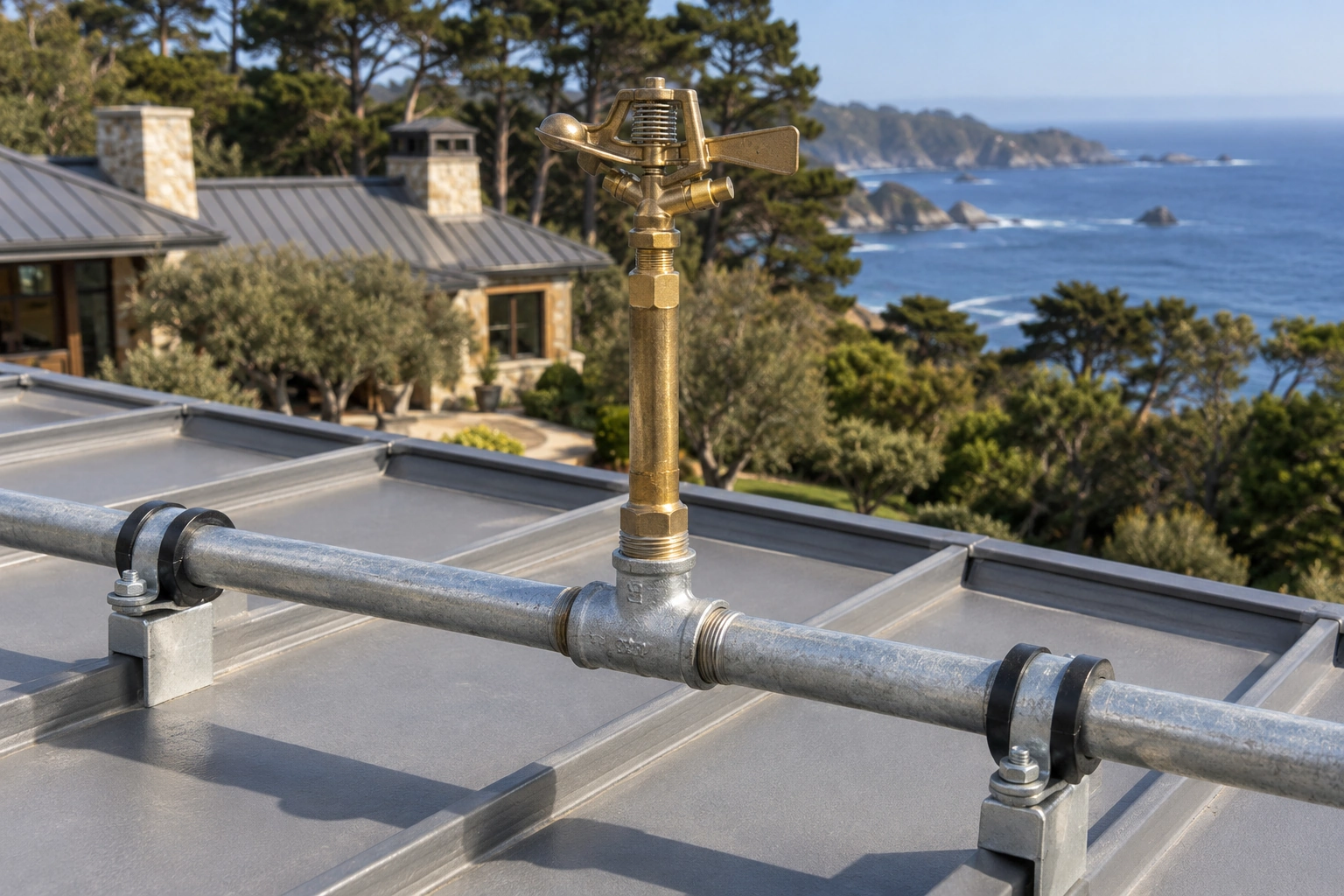

Exterior sprinkler heads are installed on securely supported risers at the designed locations. Head selection, elevation, orientation, and unobstructed movement are coordinated with the intended roof areas and available supply.

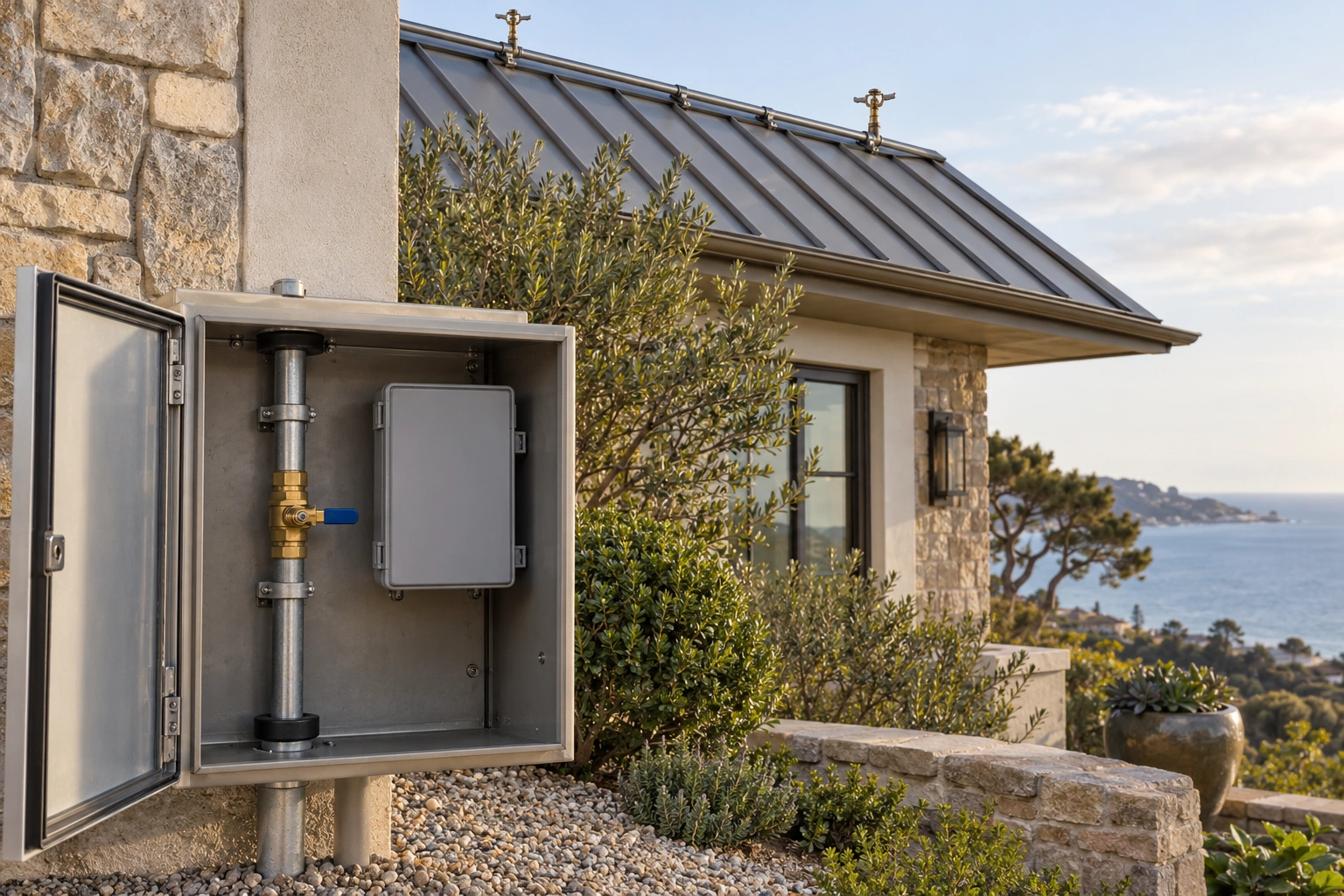

Accessible isolation valves and protected control equipment are located for routine operation and service. The homeowner’s operating instructions are coordinated with the actual manual or automatic controls installed.

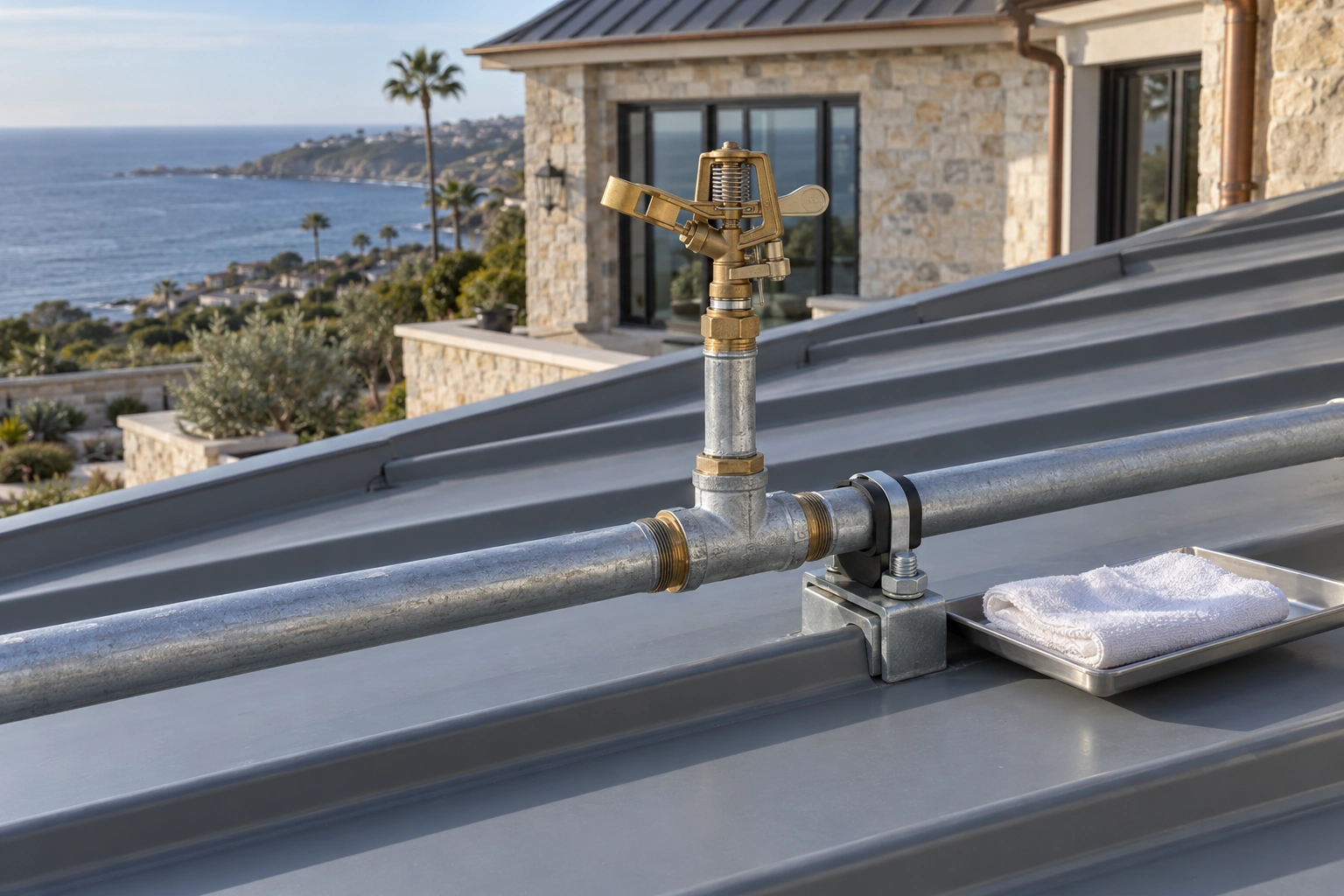

Connections, head assemblies, and roof attachments are reviewed before the spray demonstration. The system receives the required leakage and operational checks, with any issues corrected before commissioning is completed.

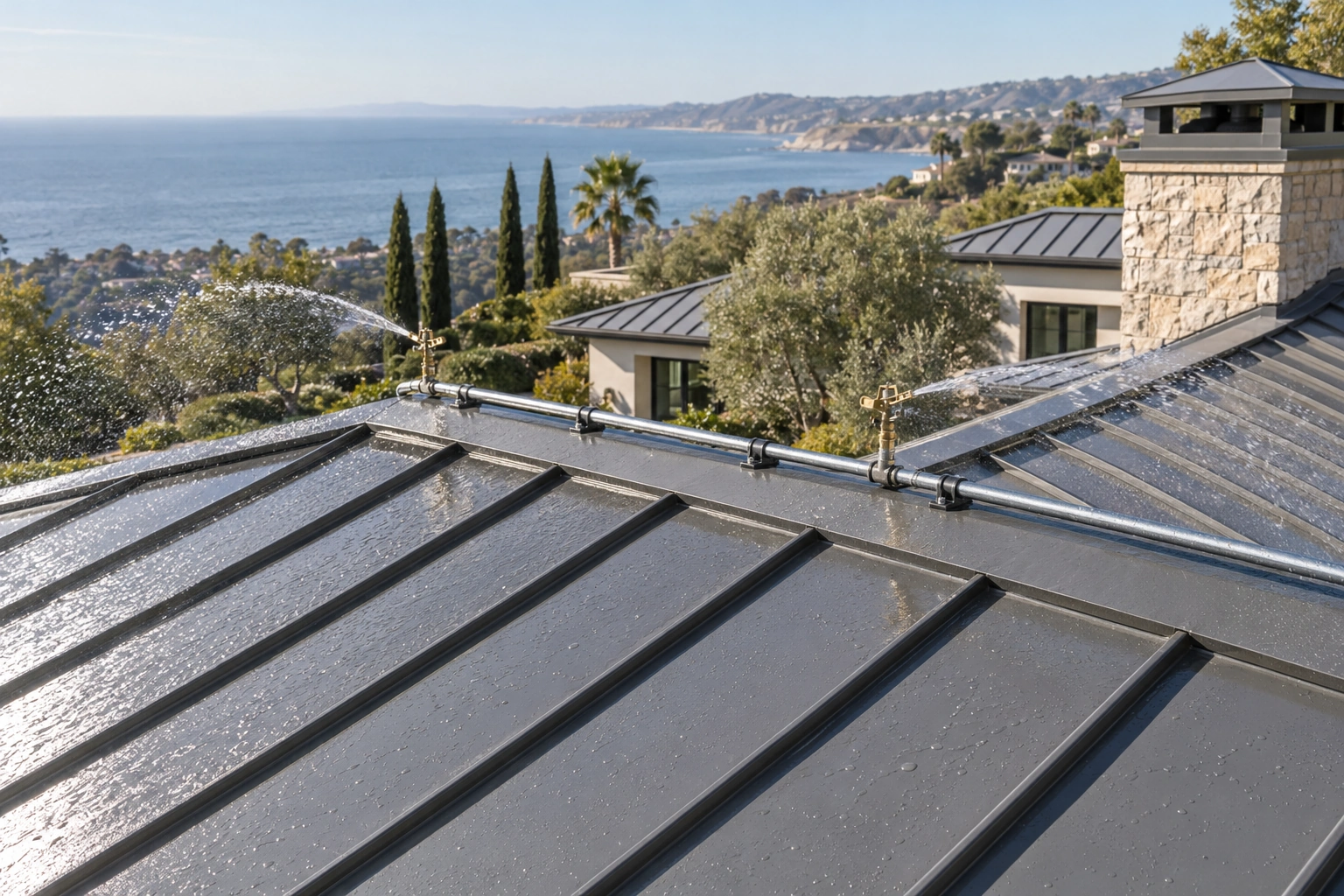

A controlled commissioning run makes the spray direction and wetting pattern visible. The installer observes roof areas, obstructions, overspray, and system response, then makes the appropriate adjustments.
The completed exterior installation is reviewed with the homeowner, including controls, maintenance access, periodic checks, and drainage or winterization where applicable. Actual operating limitations and the site’s emergency plan remain part of the handover.
