See how exterior nozzles and distribution piping are integrated along a luxury home’s roof edge. Ten illustrated stages show the supports, connections, and visible spray patterns of an eave-wetting installation.
Select any photo to view it larger.
The eaves, roof edges, wall surfaces, and changes in elevation are reviewed with the homeowner. The proposed exterior wetting layout is coordinated with the home’s architecture and the intended areas of coverage.

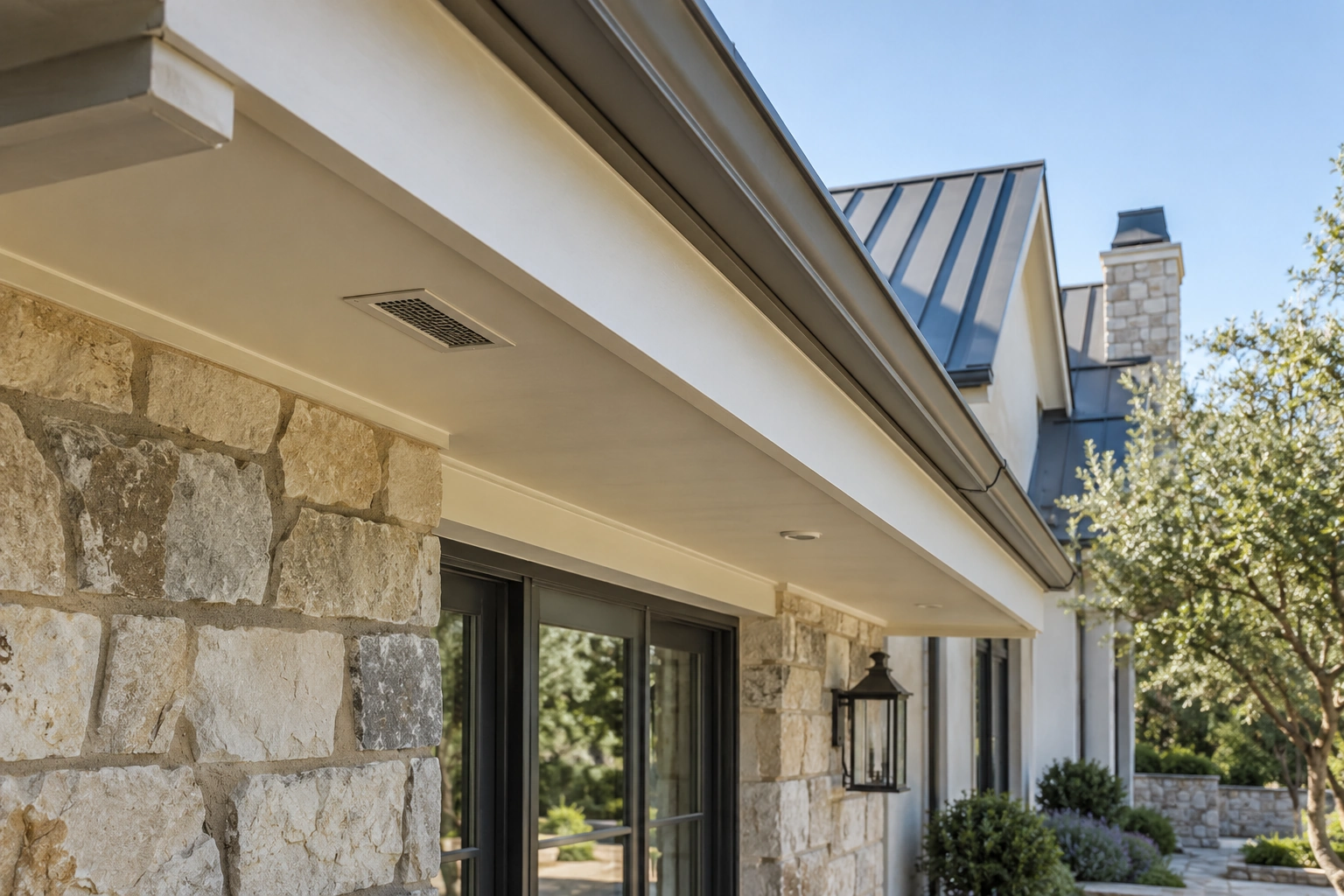

Existing fascia and soffits are examined before supports are selected. The review identifies suitable attachment locations while keeping gutters, ventilation openings, and maintenance access clear.

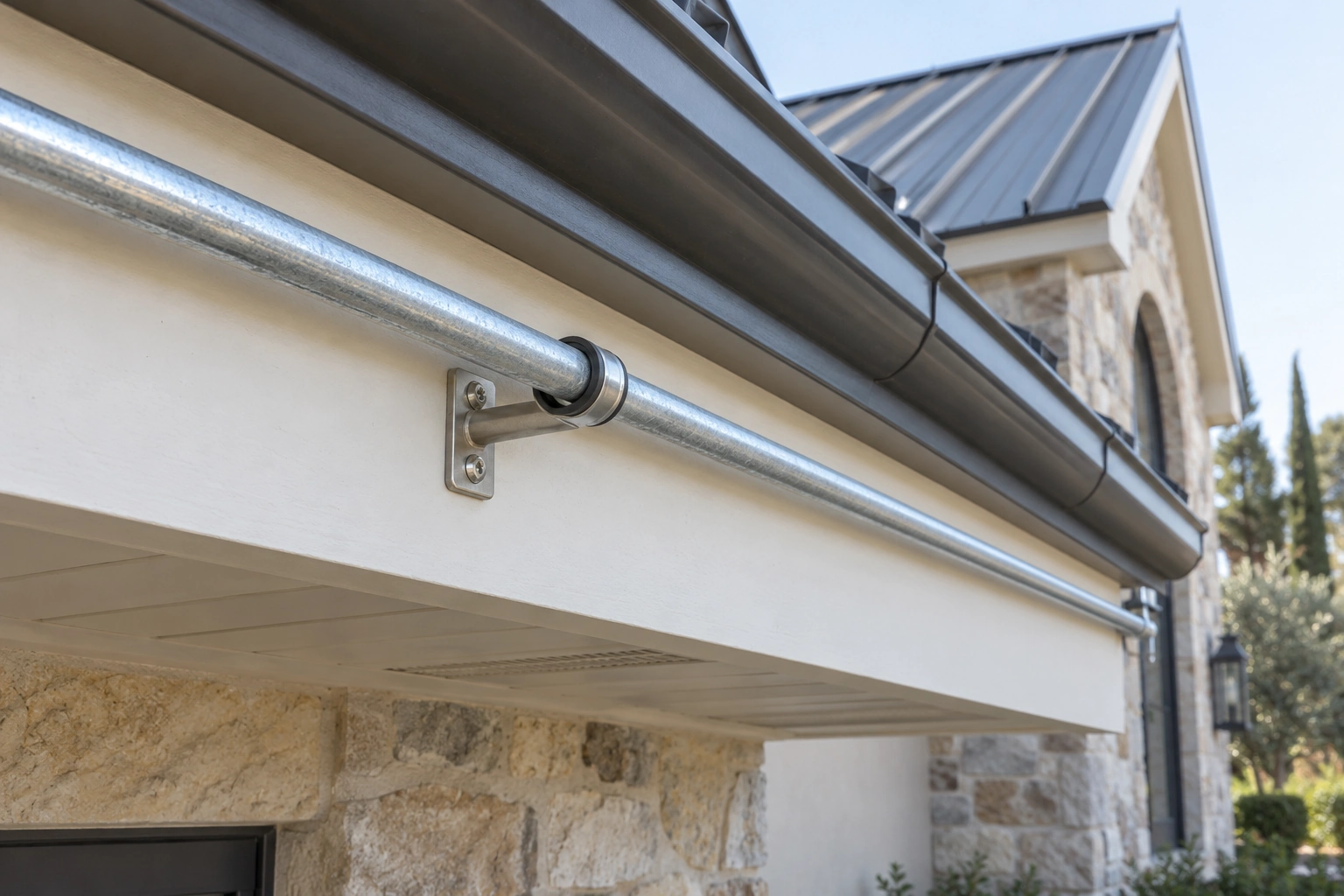

The distribution line is secured with supports selected for the substrate, pipe material, and expected loads. The illustrated standoff holds the pipe along the fascia without relying on the gutter for support.

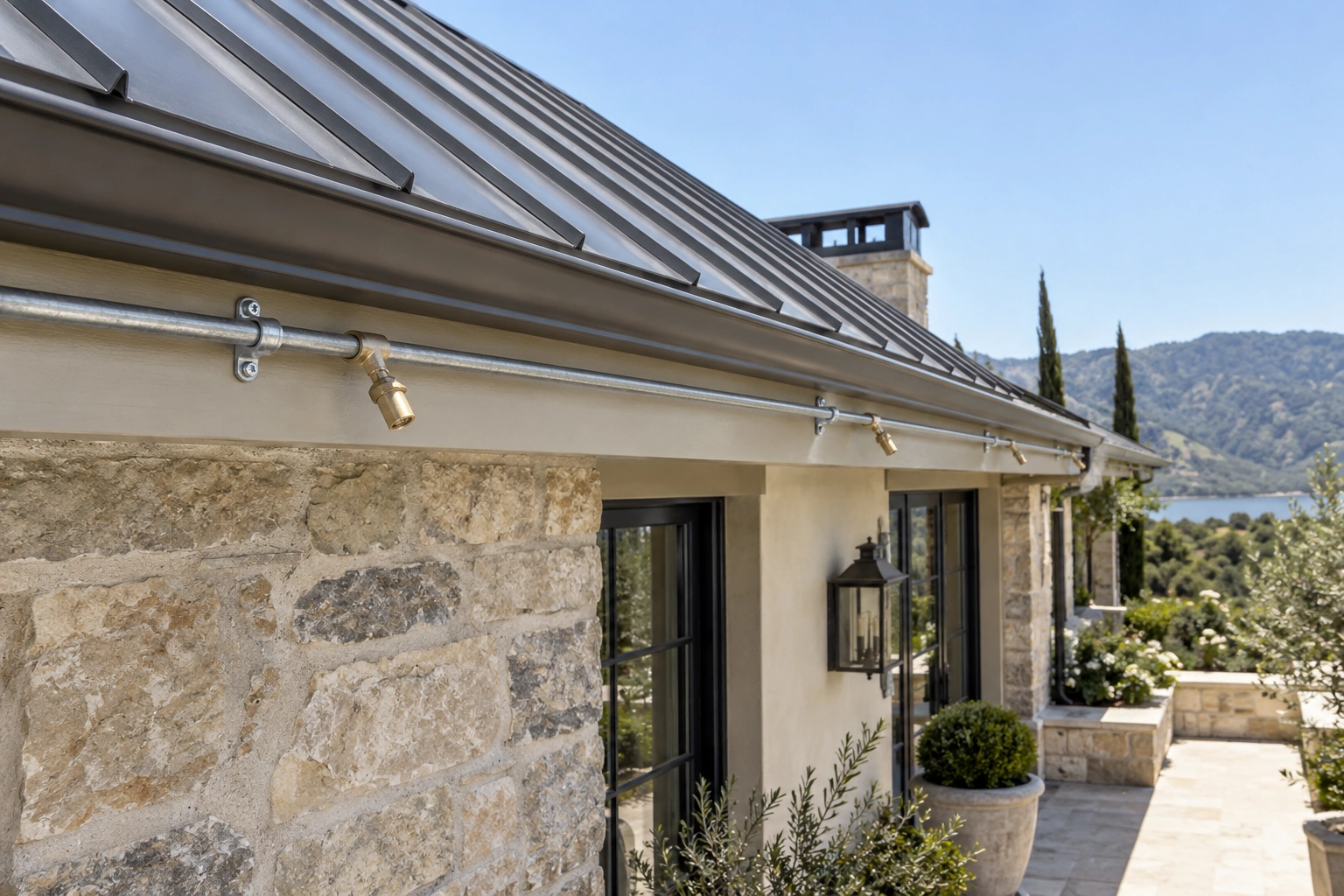

A continuous water line follows the planned roof-edge route. Compact exterior nozzles connect to the line at locations chosen for the intended wetting pattern and the available water supply.

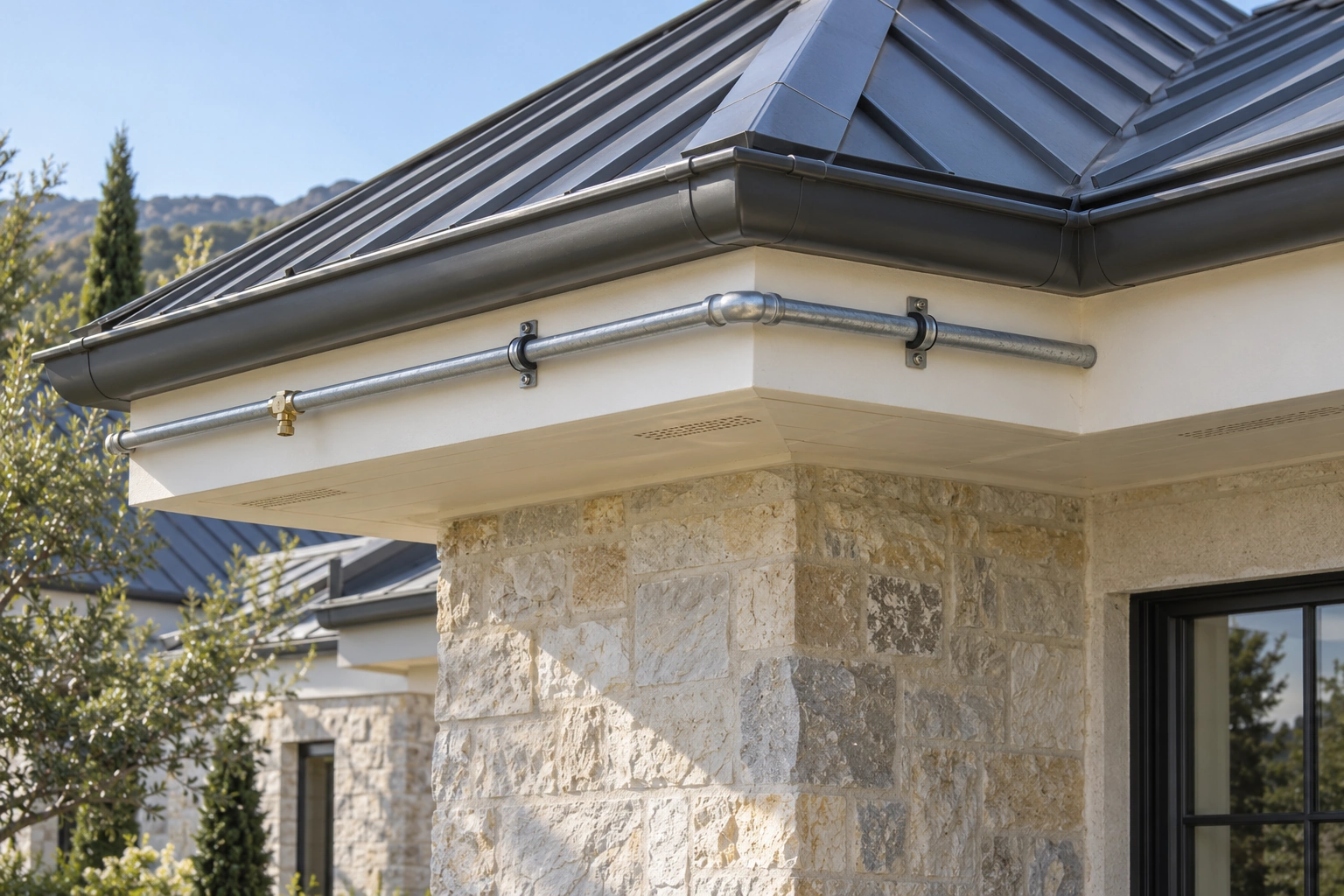

Directional fittings carry the pipe around architectural corners. Supports and fittings are positioned to keep the installation orderly and maintain access to adjoining roof and gutter details.

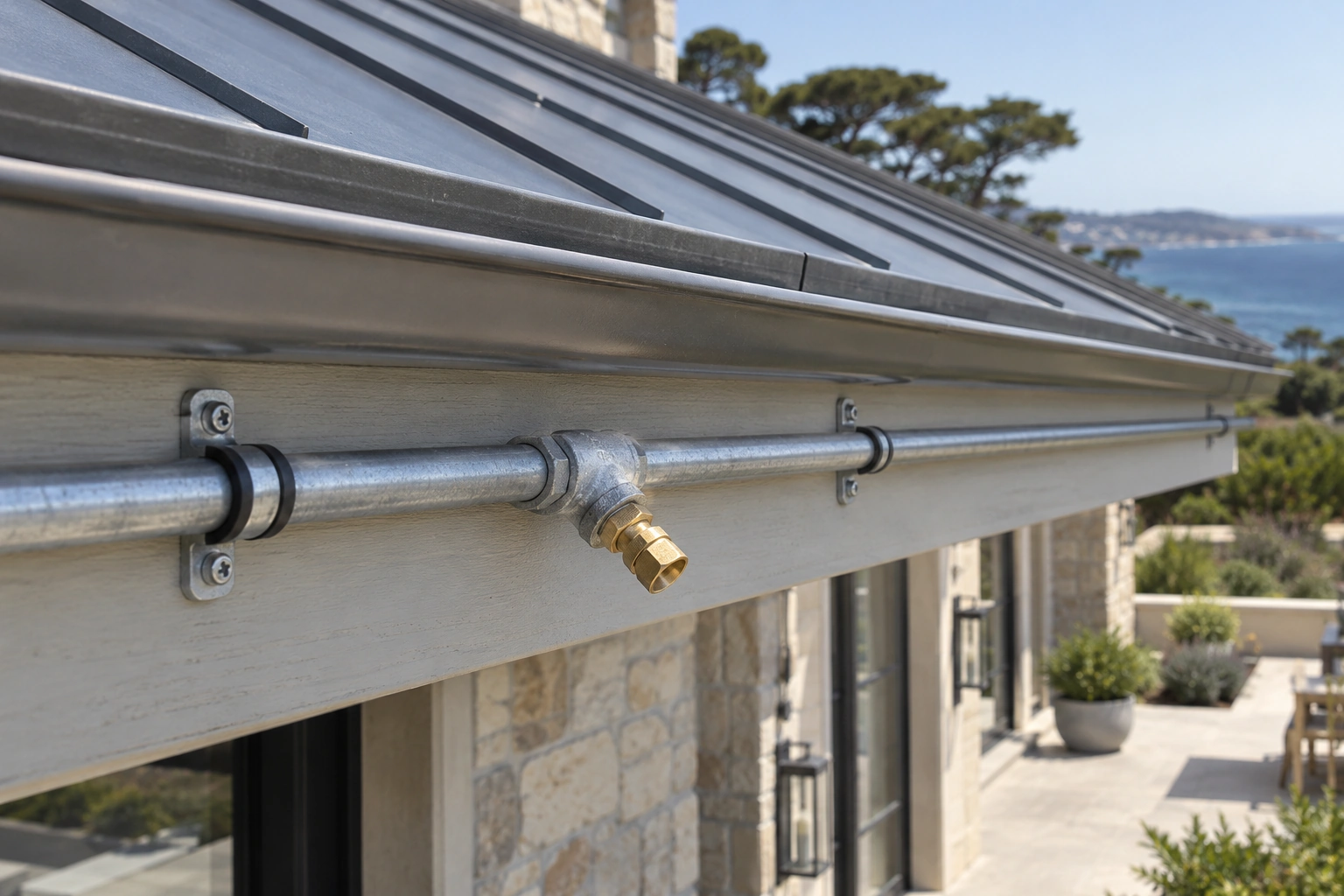

Outdoor spray components are connected to the supported piping and oriented for the planned exterior surfaces. The hardware and spray pattern are selected as part of the complete wetting system.

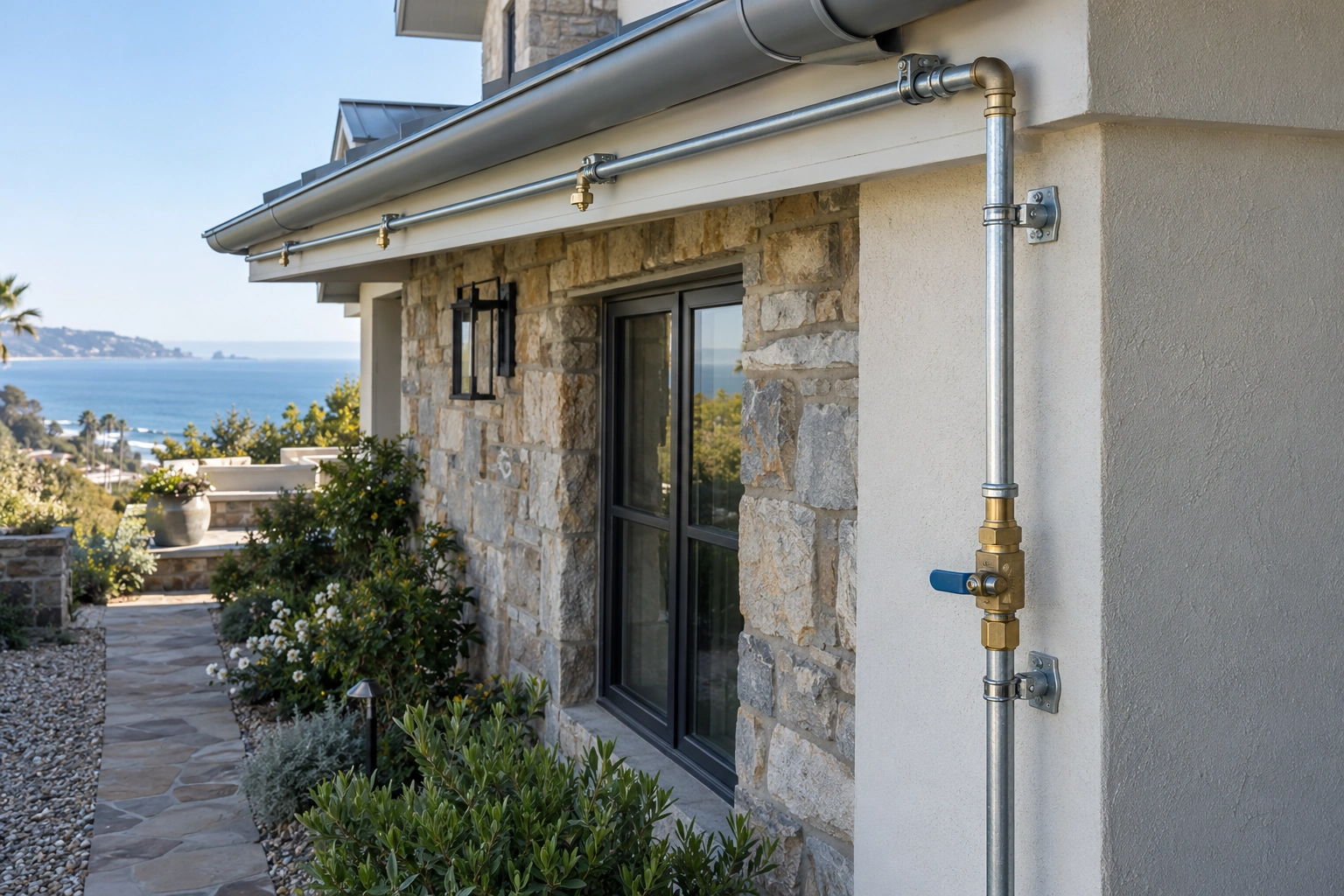

The roof-edge line connects to its designed water supply through accessible isolation and control equipment. Available flow, pressure, operating duration, and required backflow protection are coordinated for the complete system.

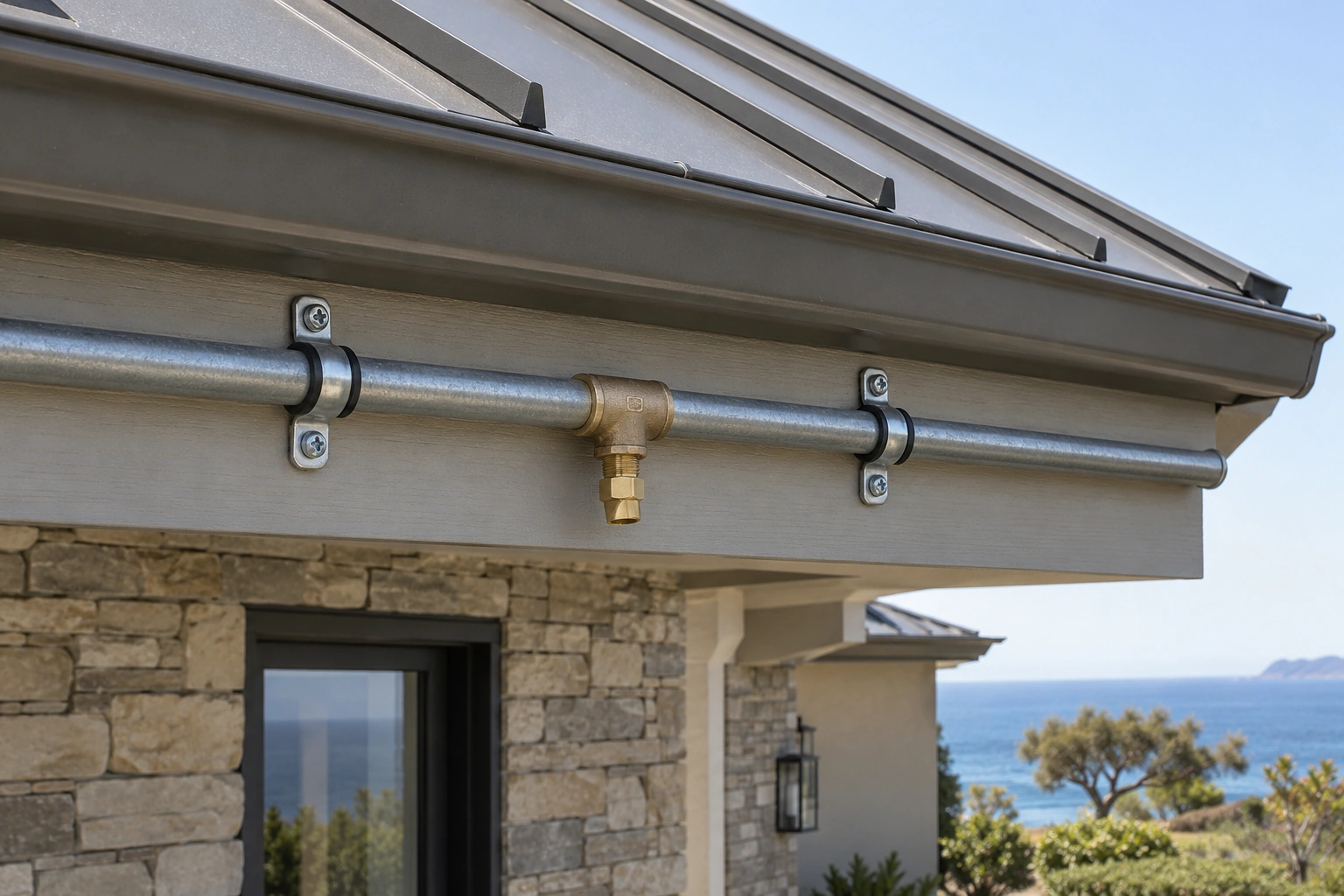

Before operation, the installer reviews pipe supports, threaded joints, nozzle connections, and access to the components. The installation then receives the project-specific leakage and operational checks.

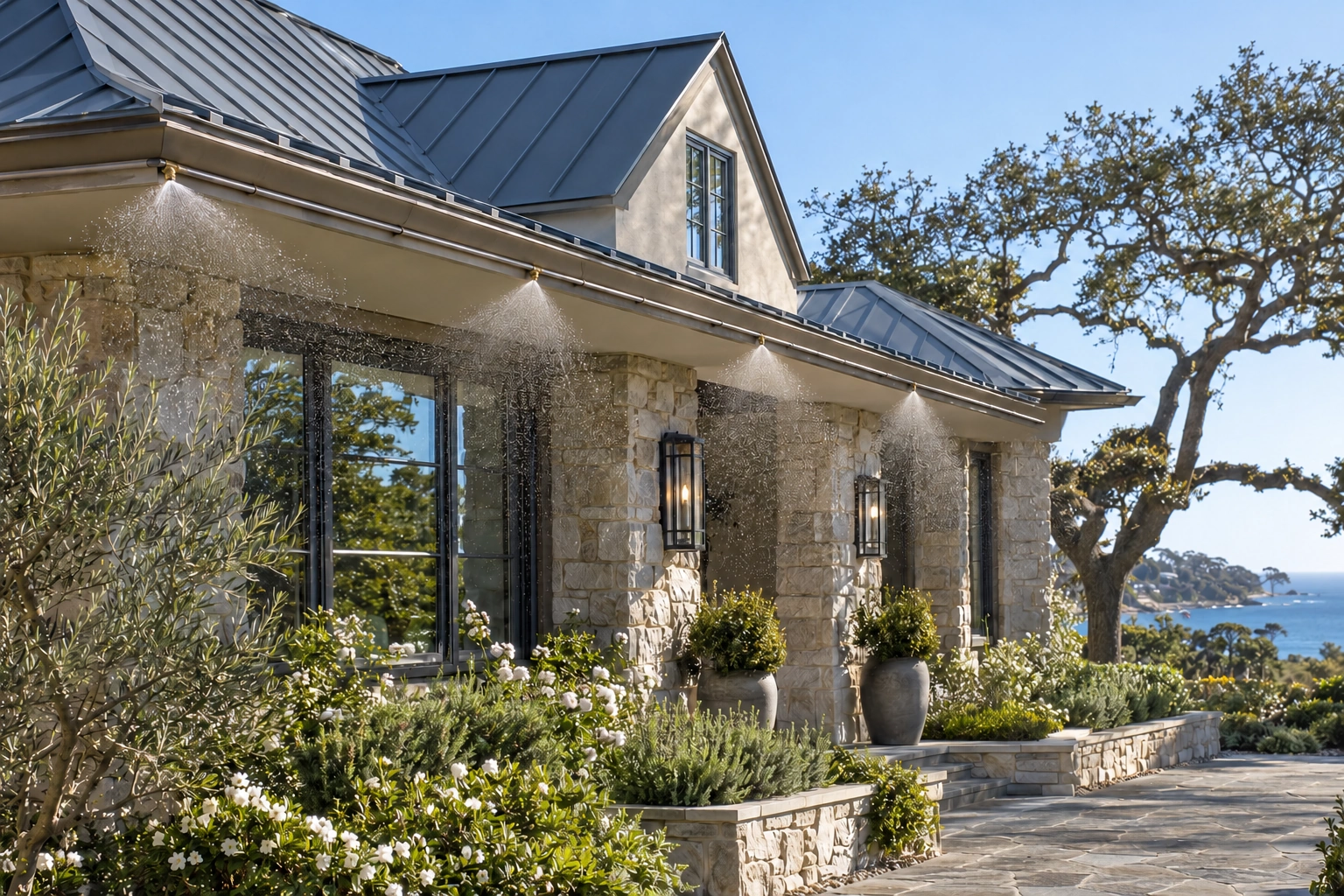

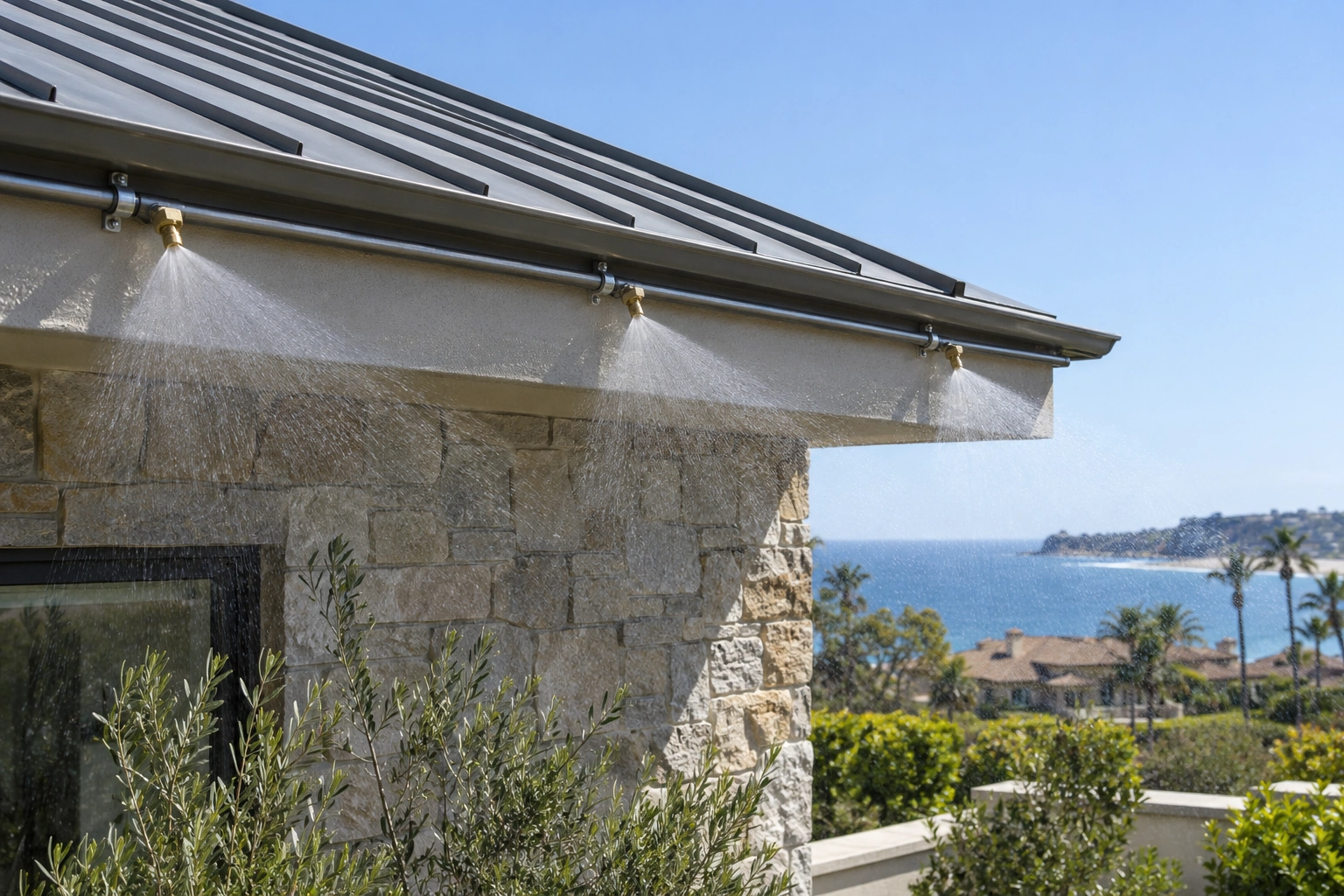

A controlled run makes nozzle direction and exterior wetting visible. The installer observes the intended surfaces, overspray, obstructions, and runoff, then adjusts the system where appropriate.
The exterior installation is reviewed as a whole, including controls, service access, periodic checks, and seasonal care where applicable. The homeowner receives operating guidance for the actual installed system.
