Follow the replacement of aging galvanized water lines in an existing luxury home. Ten illustrated stages show careful access, removal, new copper piping, accessible transitions, fixture reconnection, and final checks.
Select any photo to view it larger.

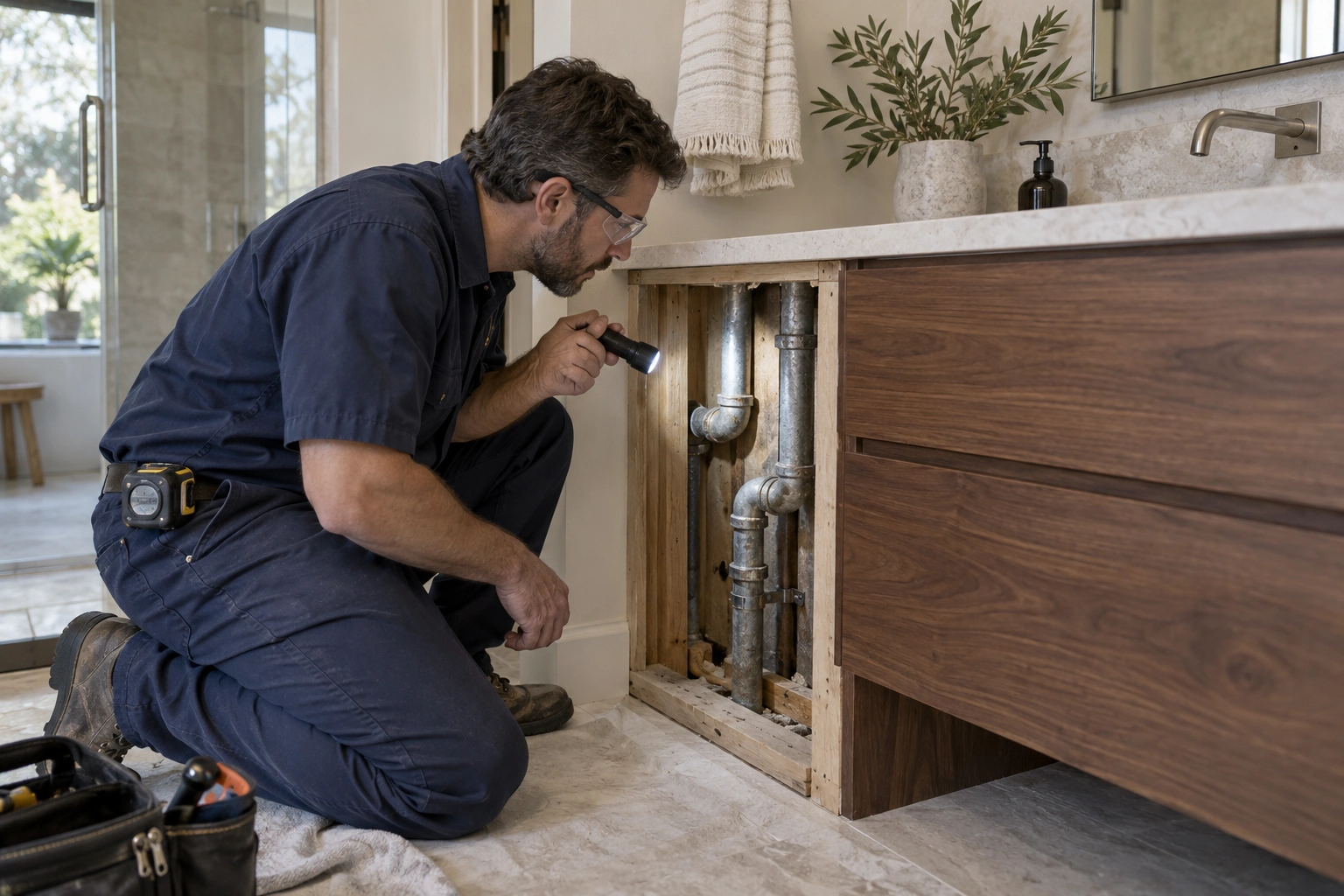

The existing water lines are reviewed to identify the areas being replaced, the fixtures they serve, and any piping that will remain. Access is planned around the home’s finishes and existing structure.

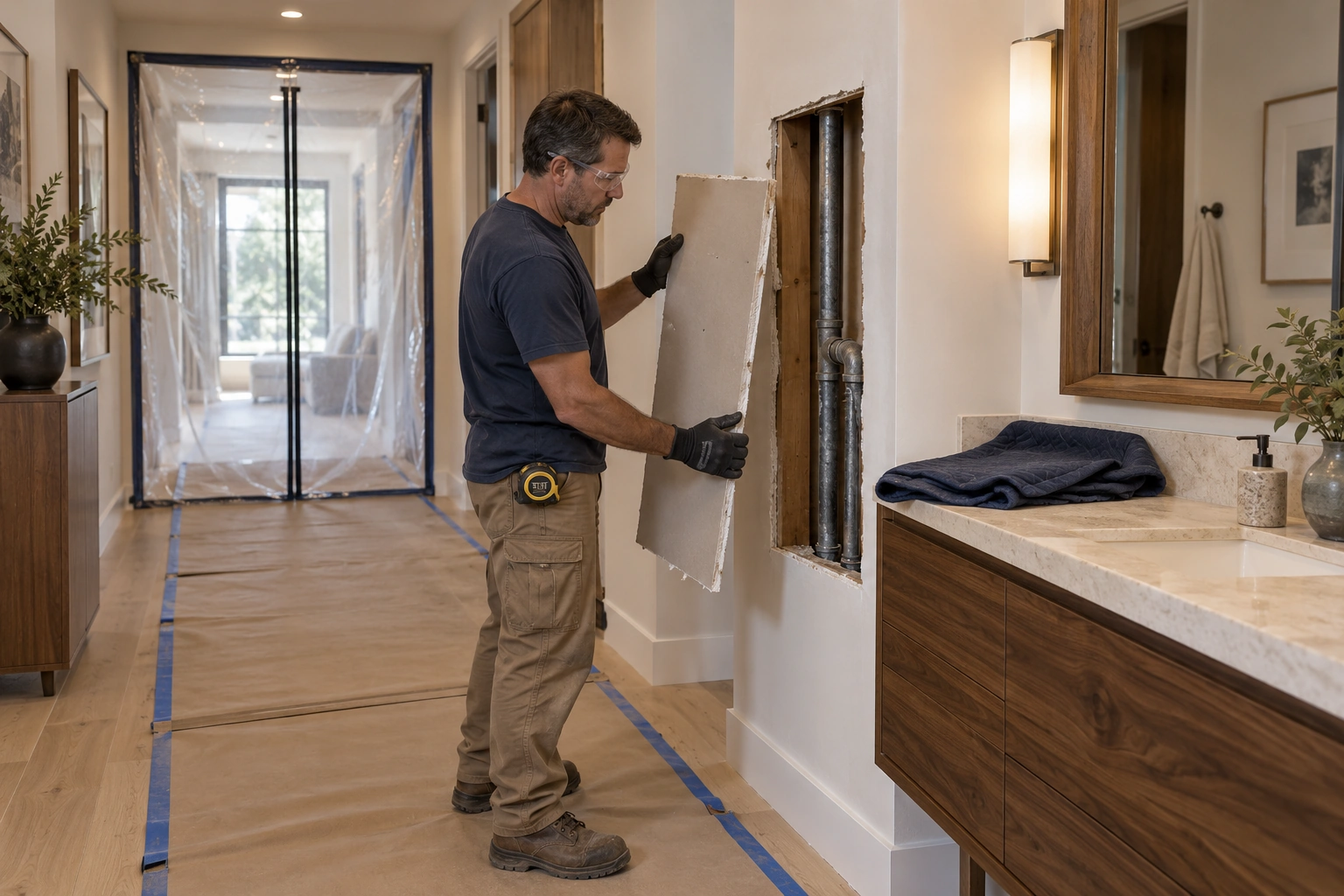

Floor protection and a dust barrier help contain the work area. Selected wall openings expose the water piping while preserving surrounding cabinetry, stonework, and sound framing.
The affected supply is isolated and residual pressure is released before piping is disconnected. The illustrated shutoff lever sits across the line in its closed position.

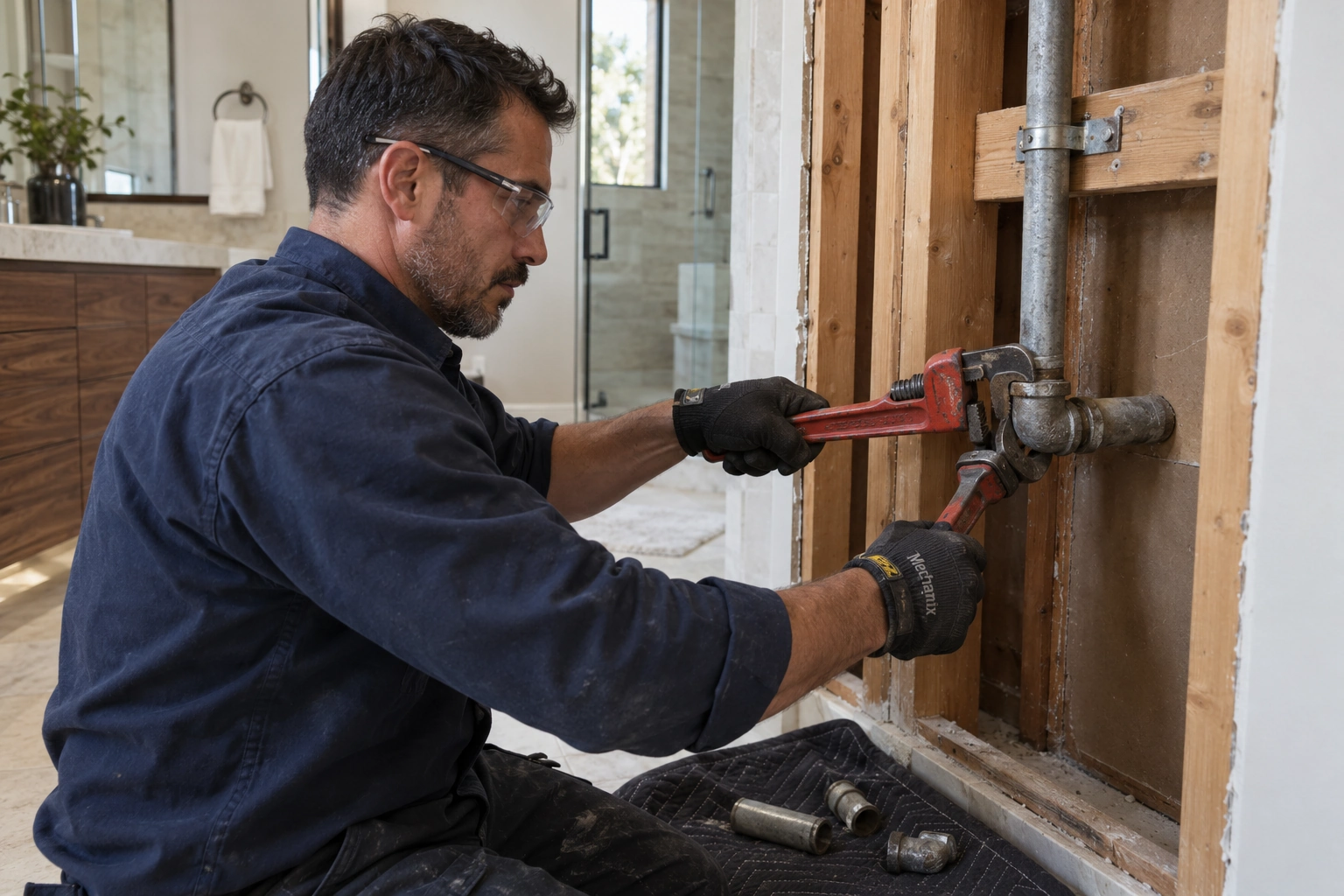

Old galvanized sections are disconnected in controlled stages. Counter-holding the joint and supporting retained piping help limit strain on adjacent connections and the structure.

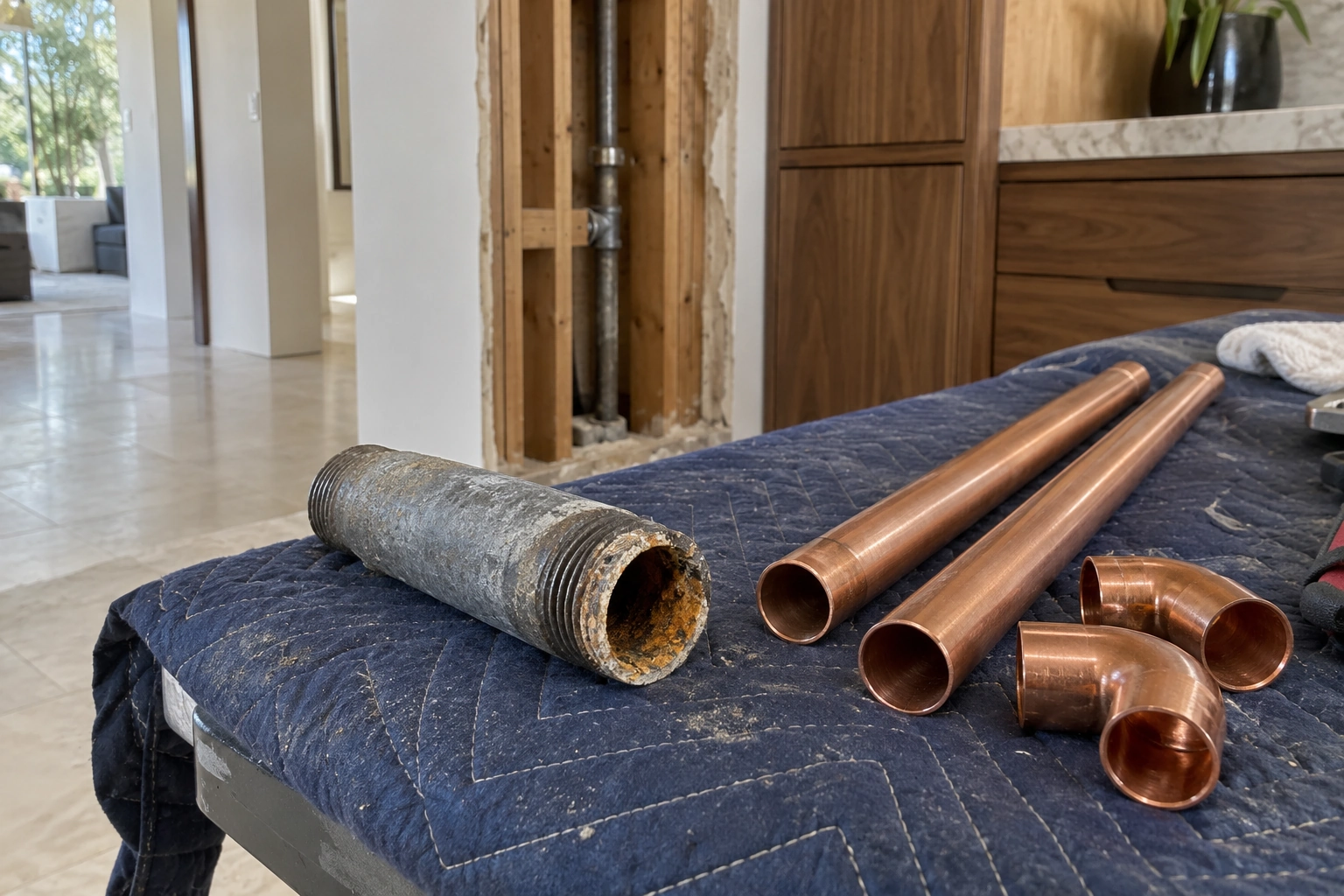

A removed pipe section illustrates the corrosion and mineral buildup that can develop inside aging galvanized lines. New copper tubing and compatible fittings are prepared for the planned replacement route.

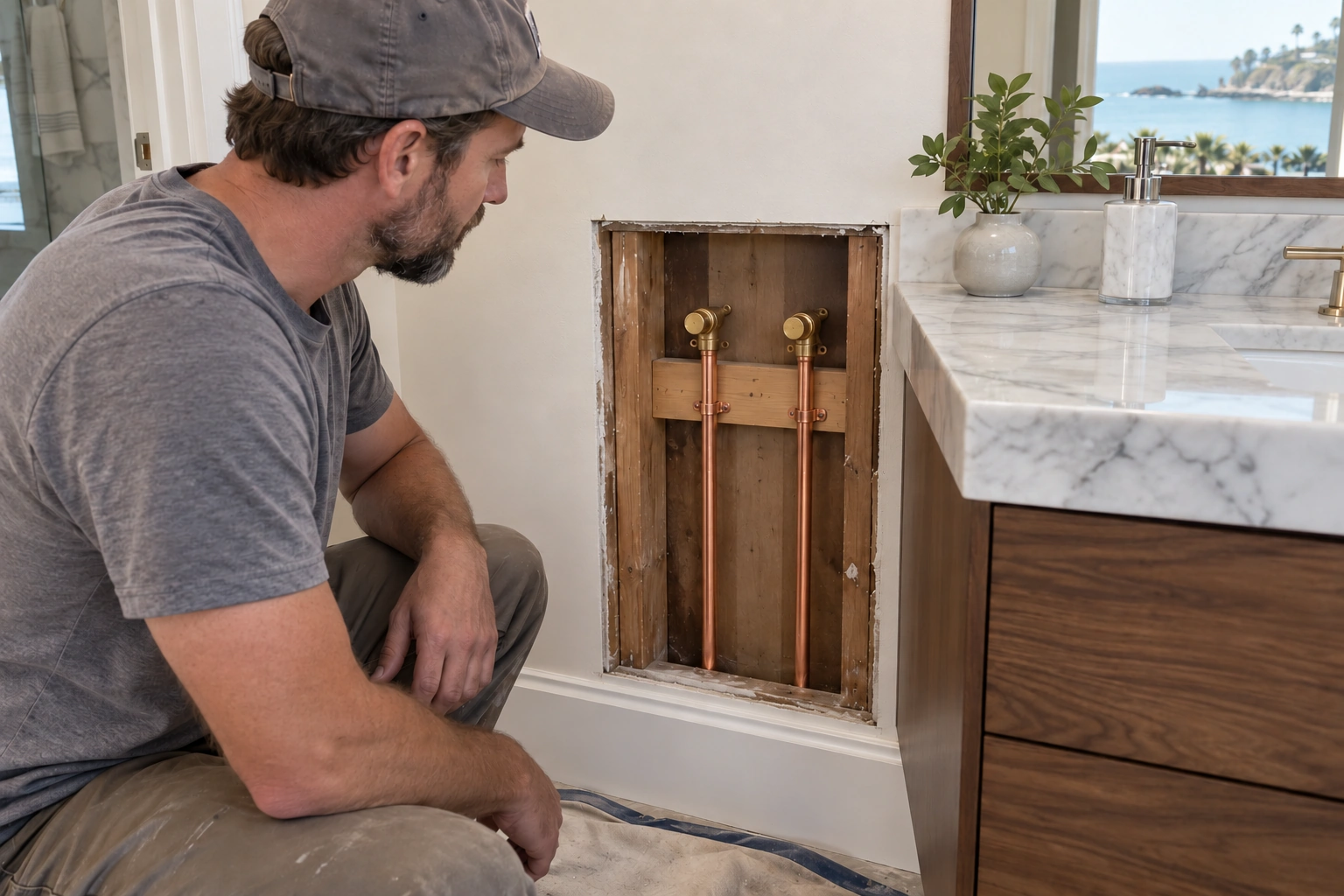

Replacement hot and cold water lines are routed separately, supported, and prepared for fixture connections. The exposed copper shown here is an intermediate installation stage.

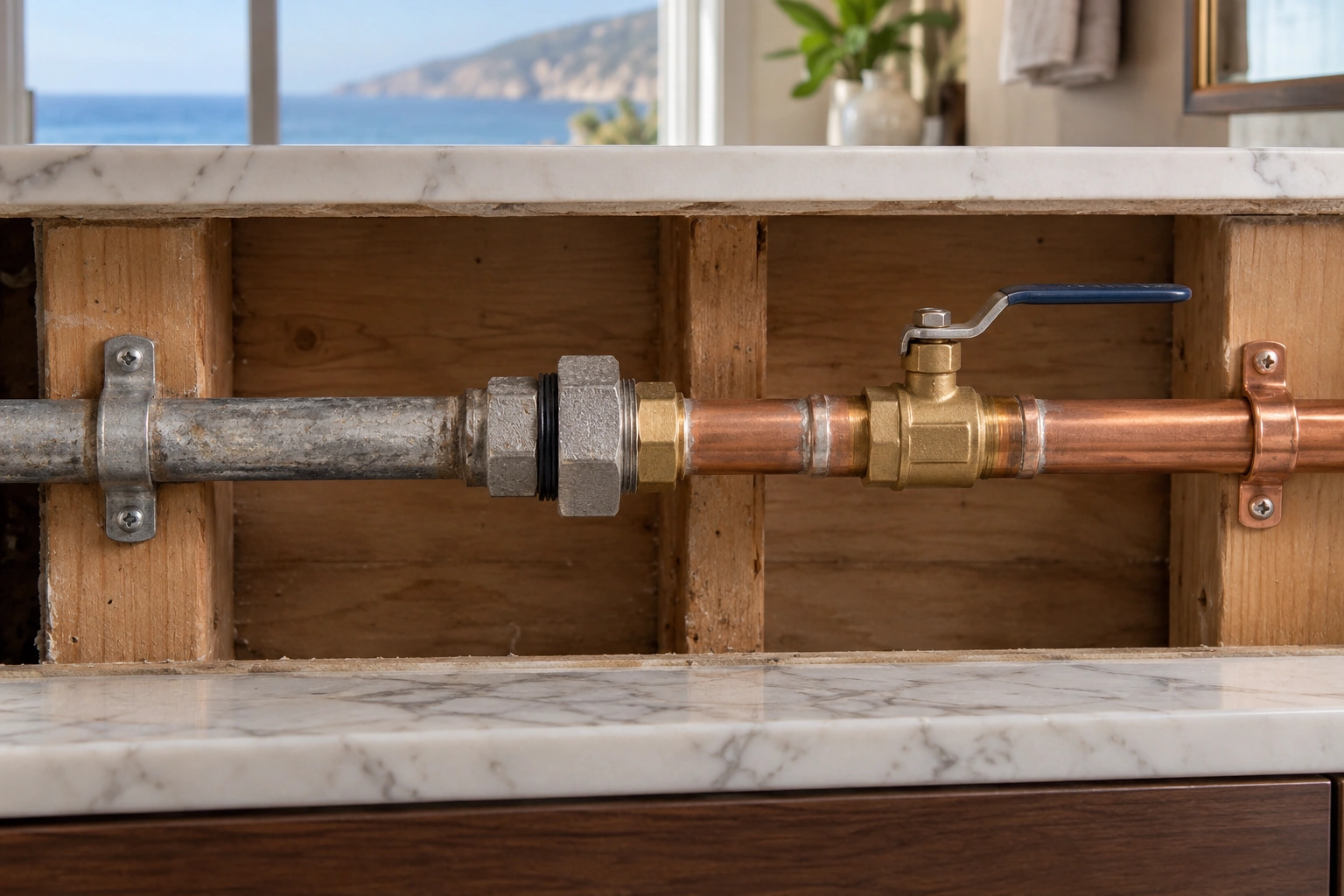

Where galvanized piping remains outside the replacement scope, the transition to copper uses an appropriate approved dielectric union. An accessible shutoff provides control of the connected water line.

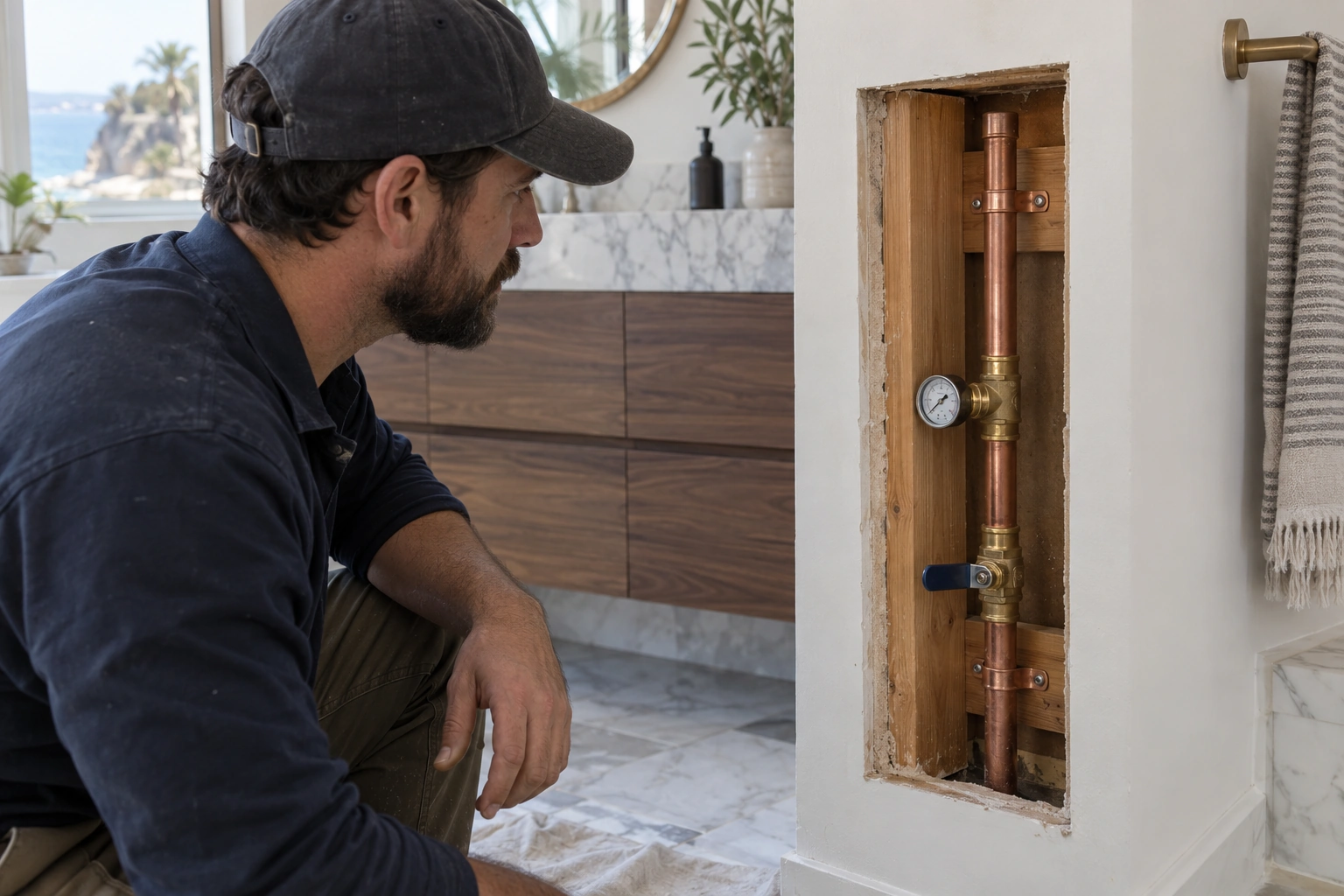

The replacement water piping is prepared for the required pressure test while its joints remain exposed. Testing and rough inspection are coordinated before walls or ceilings are closed.

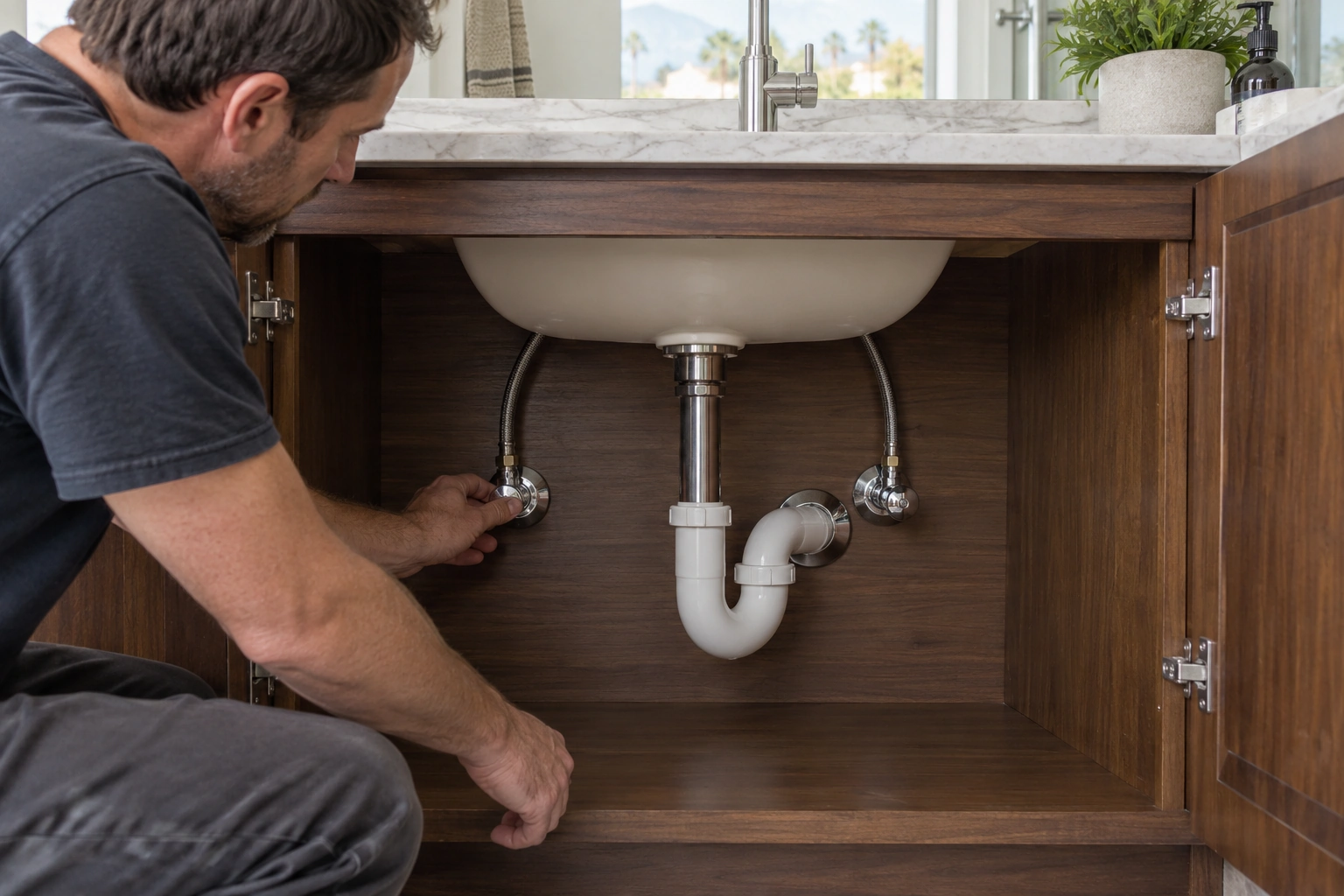

The hot and cold supplies reconnect through accessible fixture shutoffs and suitable supply connectors. Connections are aligned, secured, and reviewed for leakage when service is restored.

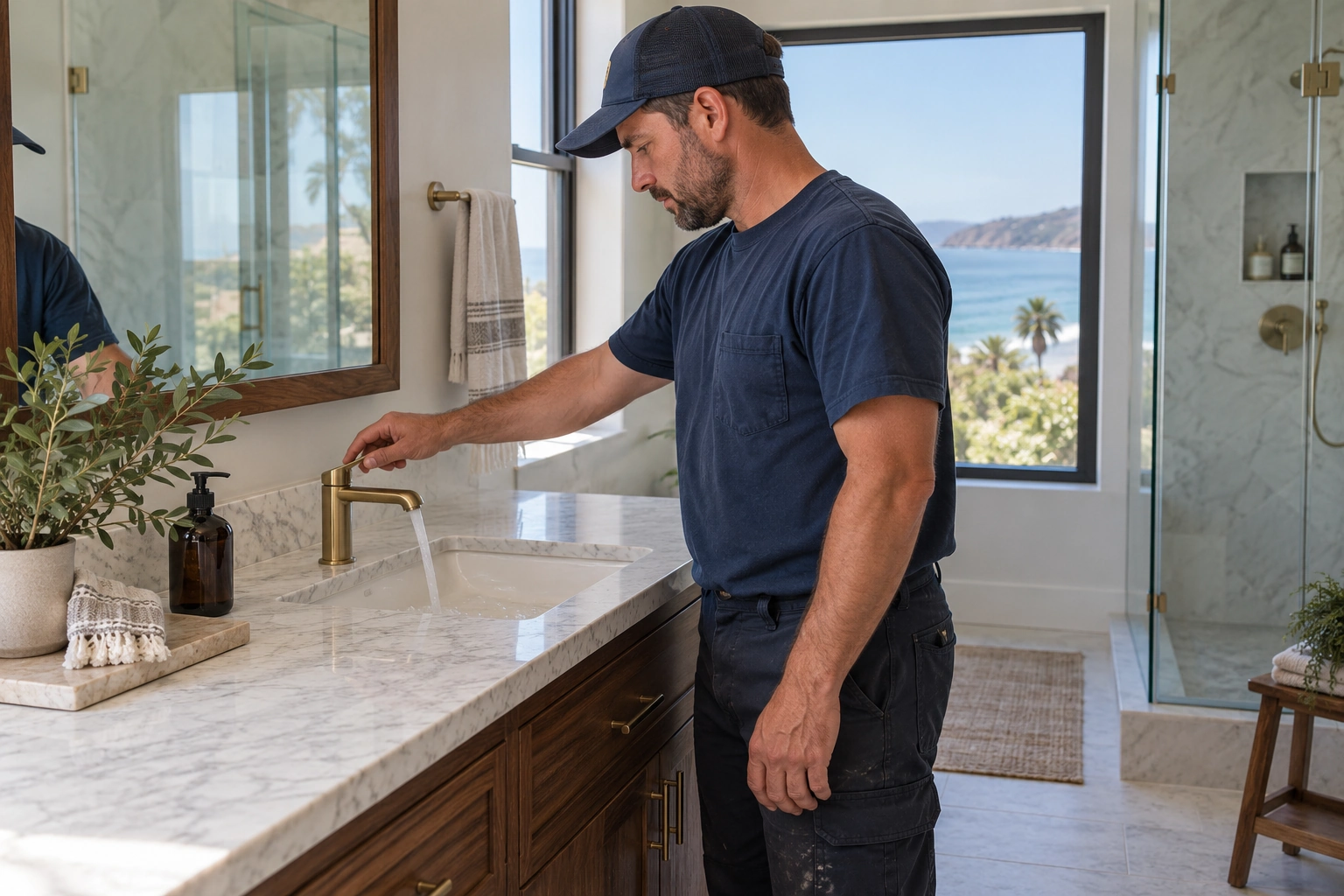

The affected water lines are flushed according to the project requirements and the fixtures are operated. Final leakage checks, finish coordination, and required inspection complete the replacement work.
