From a carefully fitted kitchen sink to the final appliance connections, explore ten illustrated installation stages inside luxury homes. Thoughtful details bring every fixture into service.
Select any photo to view it larger.
Installation begins with the selected fixtures and their matching mounting hardware. Components are organized on a padded surface, while the finished stone, cabinetry, and flooring remain protected.

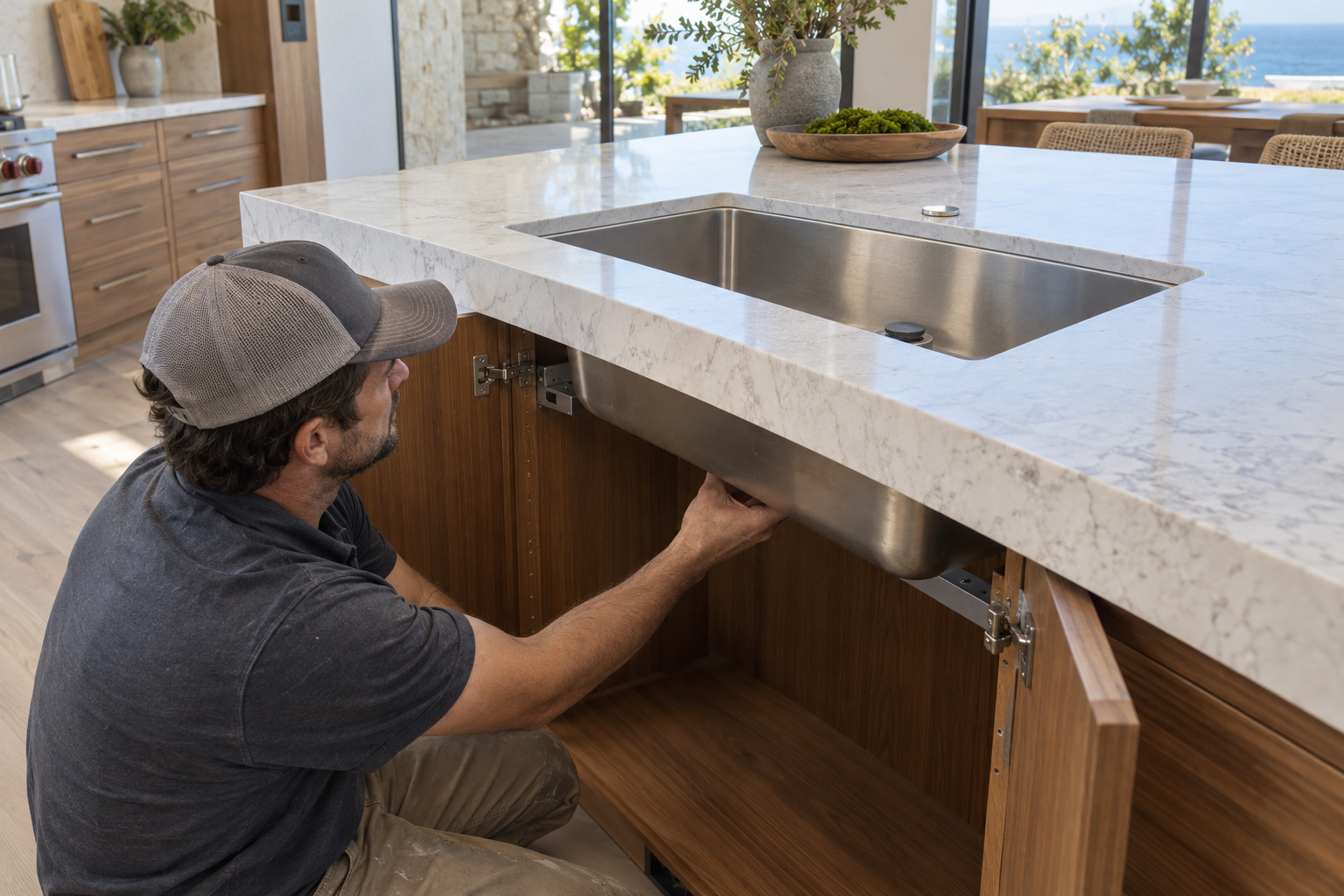

The sink is aligned beneath the stone countertop and supported with the specified mounting system. This view shows the sink being secured before the faucet, water connectors, and drain assembly are fitted.

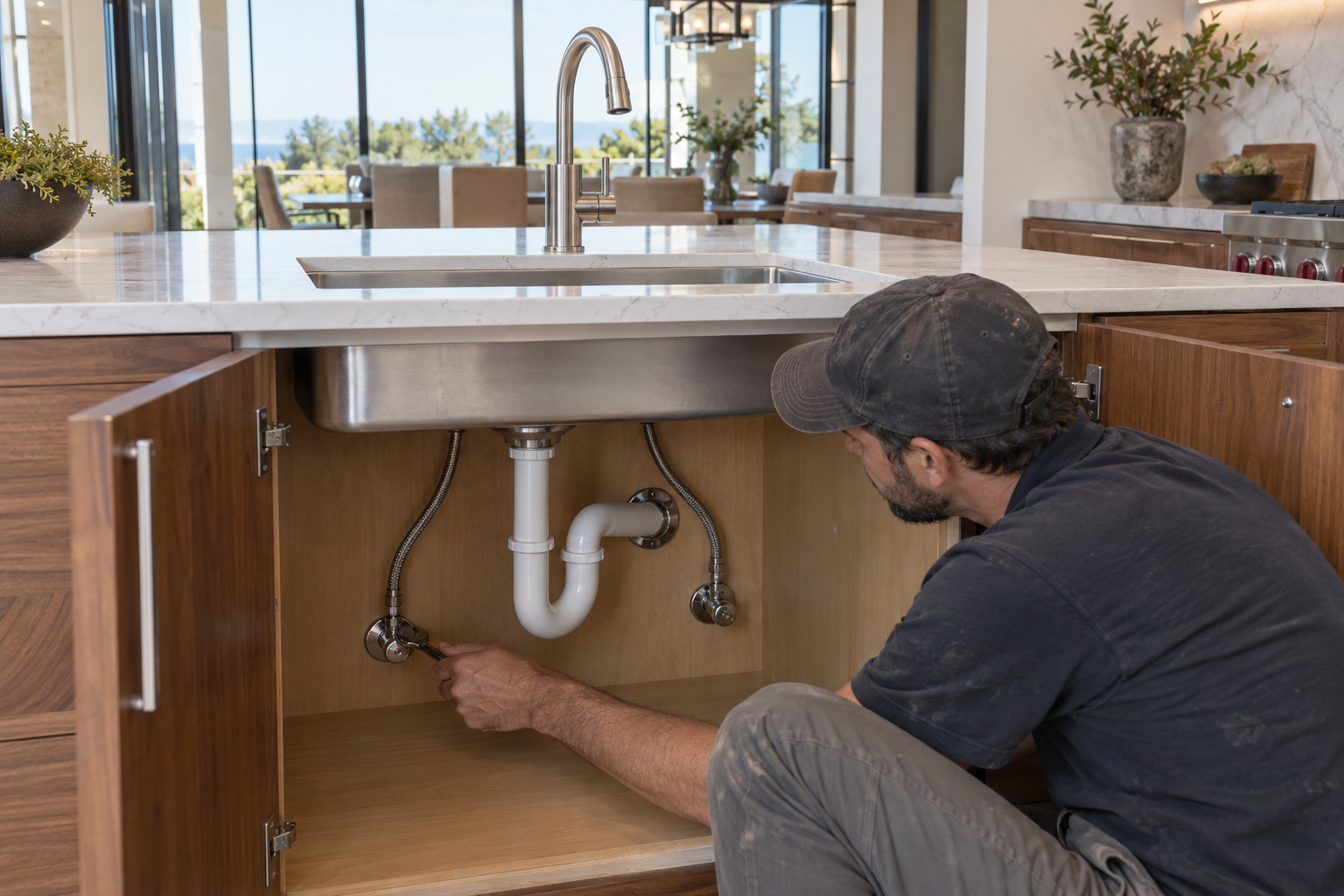

The faucet receives separate hot and cold connections through accessible shutoff valves. Below the basin, the rigid P-trap connects the sink tailpiece to the prepared wall drain connection.

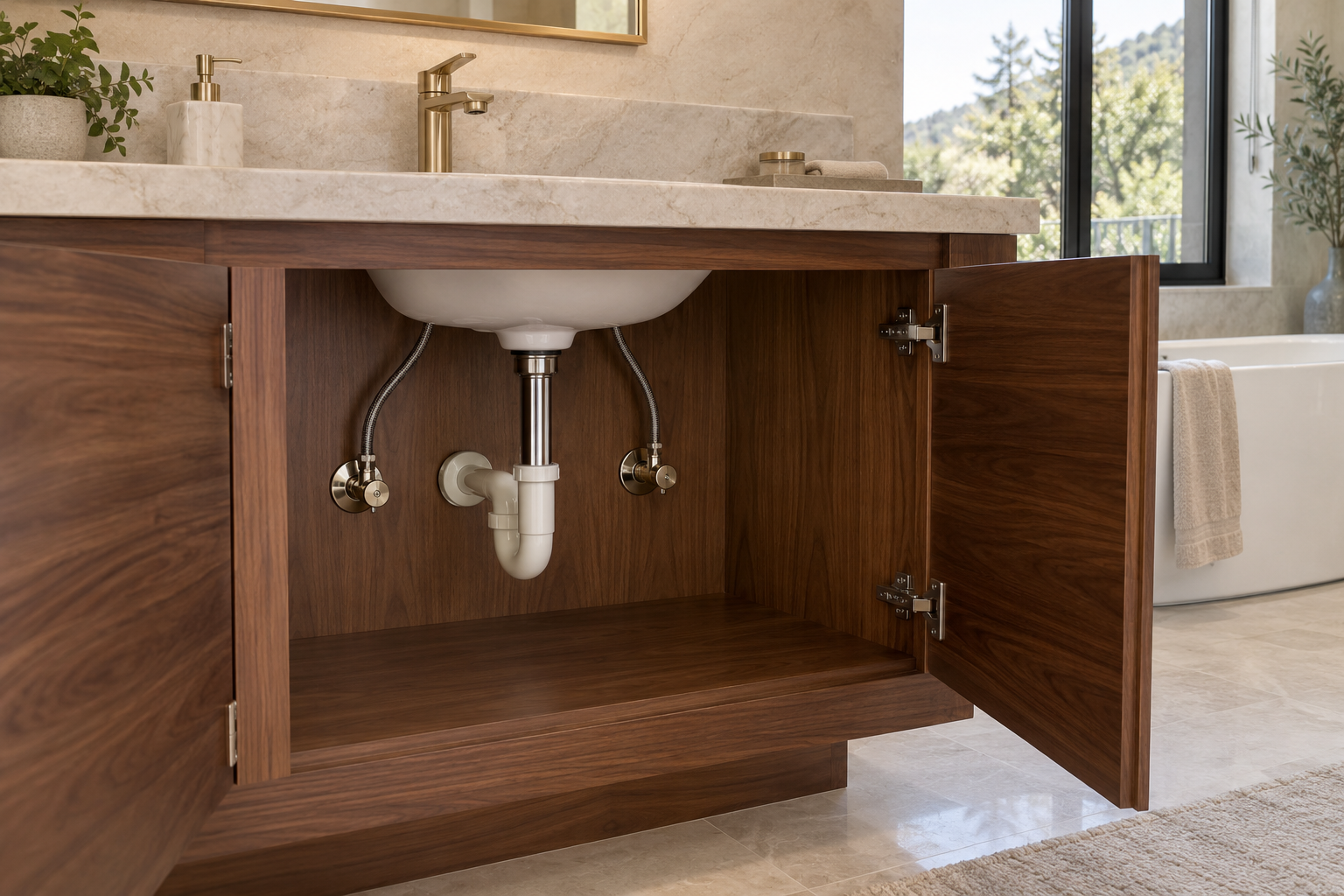

The basin and faucet are fitted to the vanity, then connected to the prepared water and drainage outlets. The open cabinet shows separate supply paths and a compact trap arrangement that leaves the connections accessible.

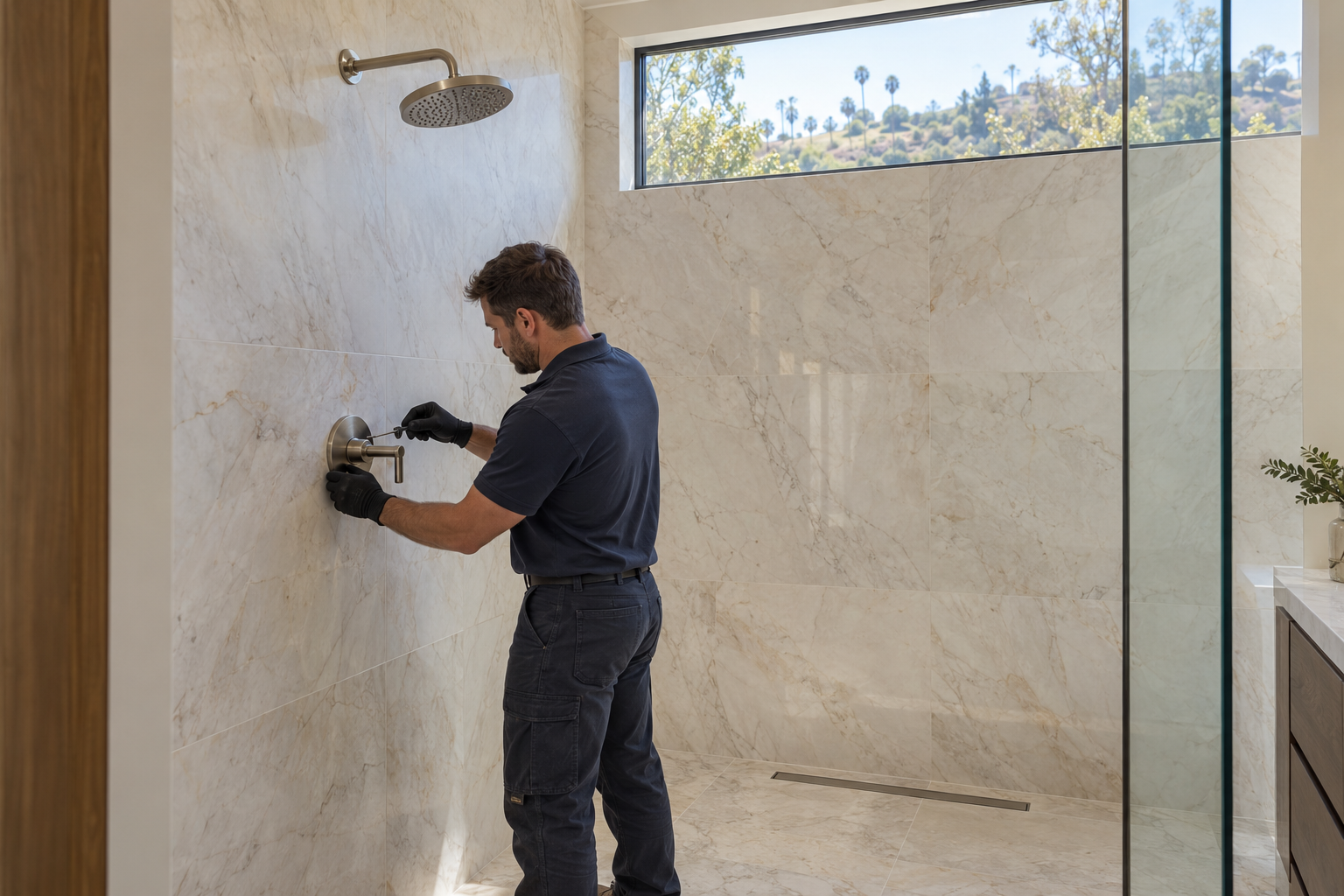

Matching trim is fitted to the previously installed shower valve, followed by the shower arm and showerhead. The finished controls are adjusted and checked with the selected valve system.

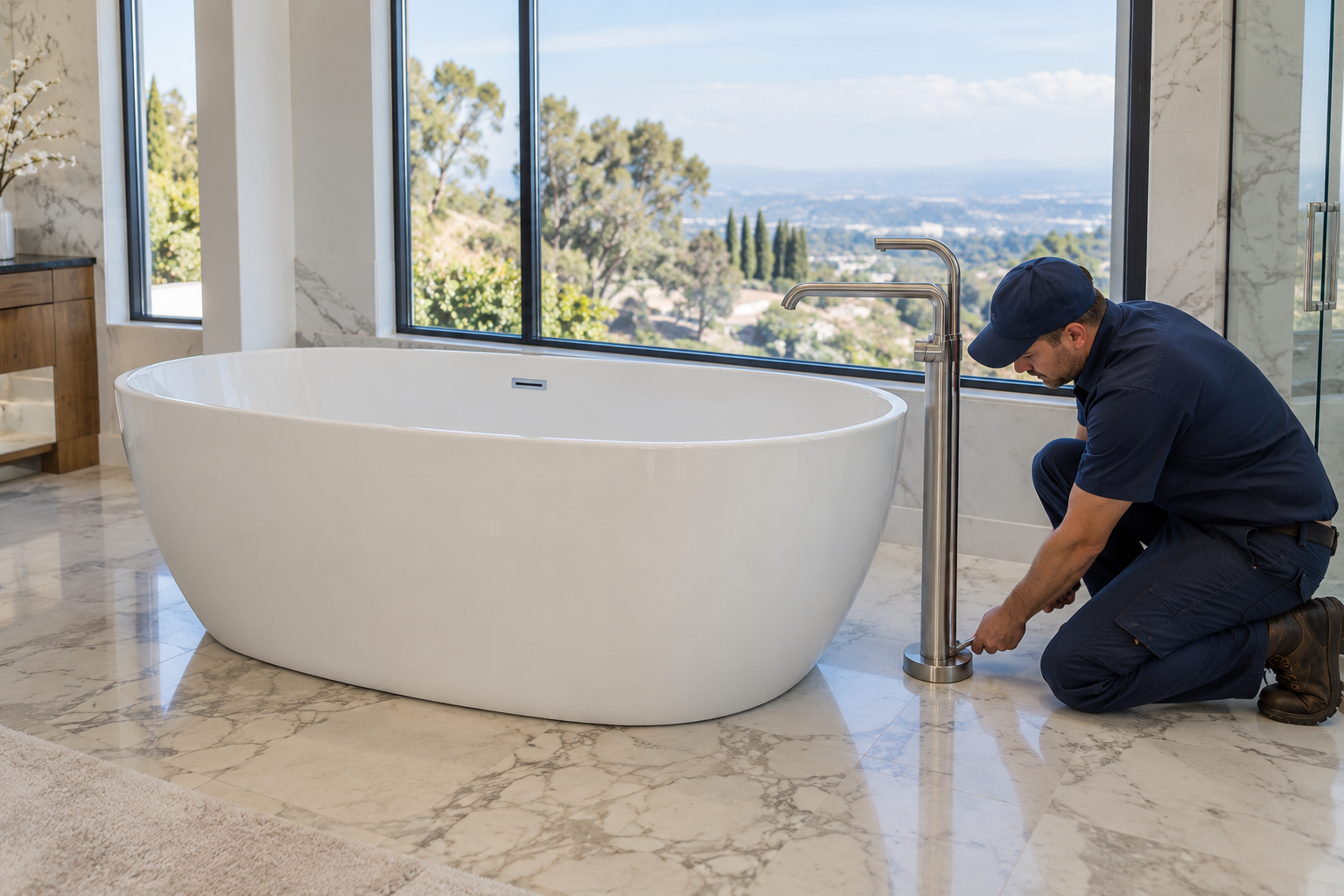

The tub is positioned over its prepared drain connection while the floor-mounted filler is secured to its mounting assembly. The fixed spout remains above the tub rim, and concealed connections are coordinated with the fixture design.

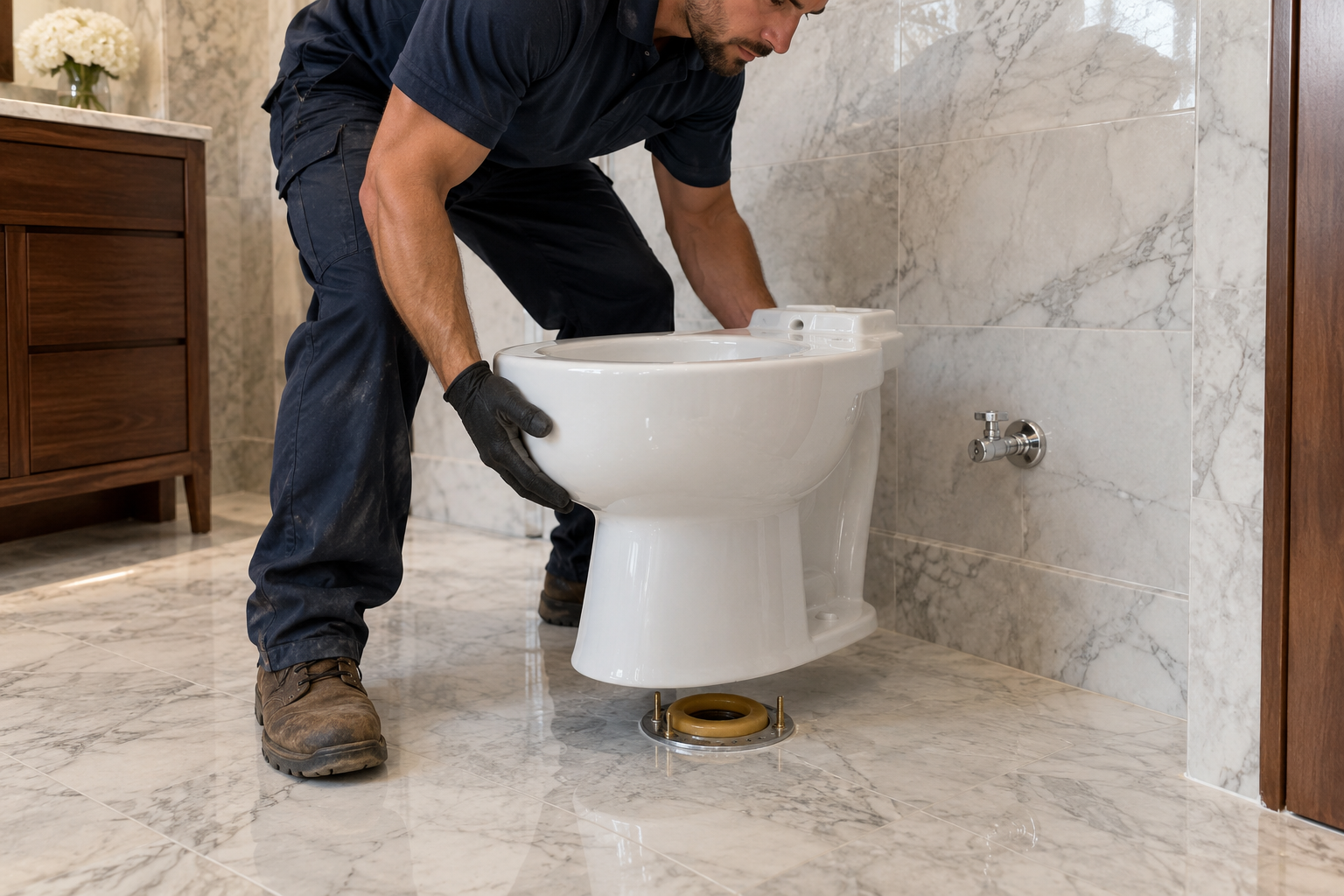

The toilet bowl is aligned over the flange and approved seal before being lowered into place. This installation stage shows the flange at the finished floor and the closet bolts ready to secure the fixture.

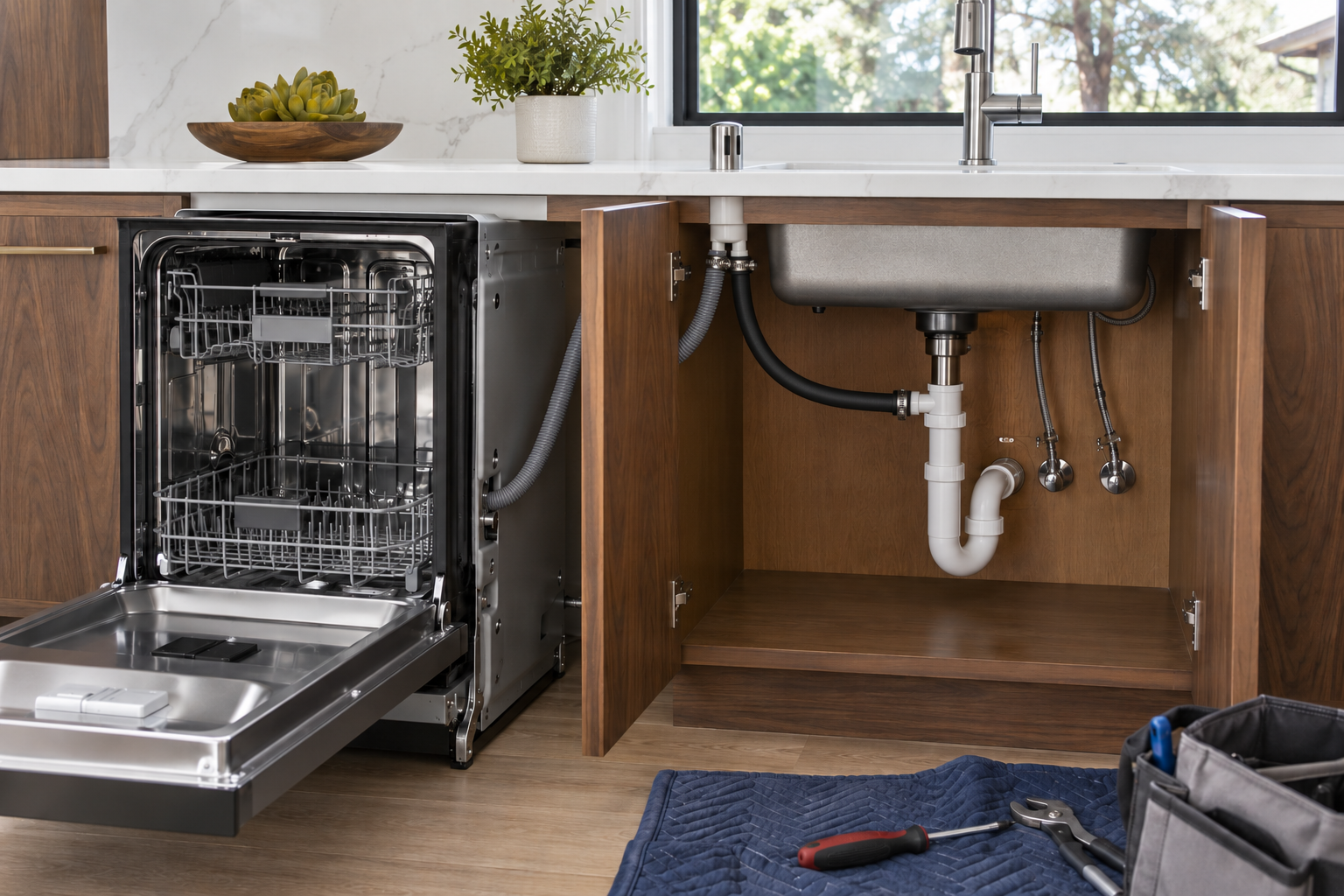

The dishwasher drain hose rises to a countertop air gap. A separate outlet hose slopes down from the air gap to the sink drain branch above the P-trap. The open cabinet makes this drainage route visible before the appliance is secured.

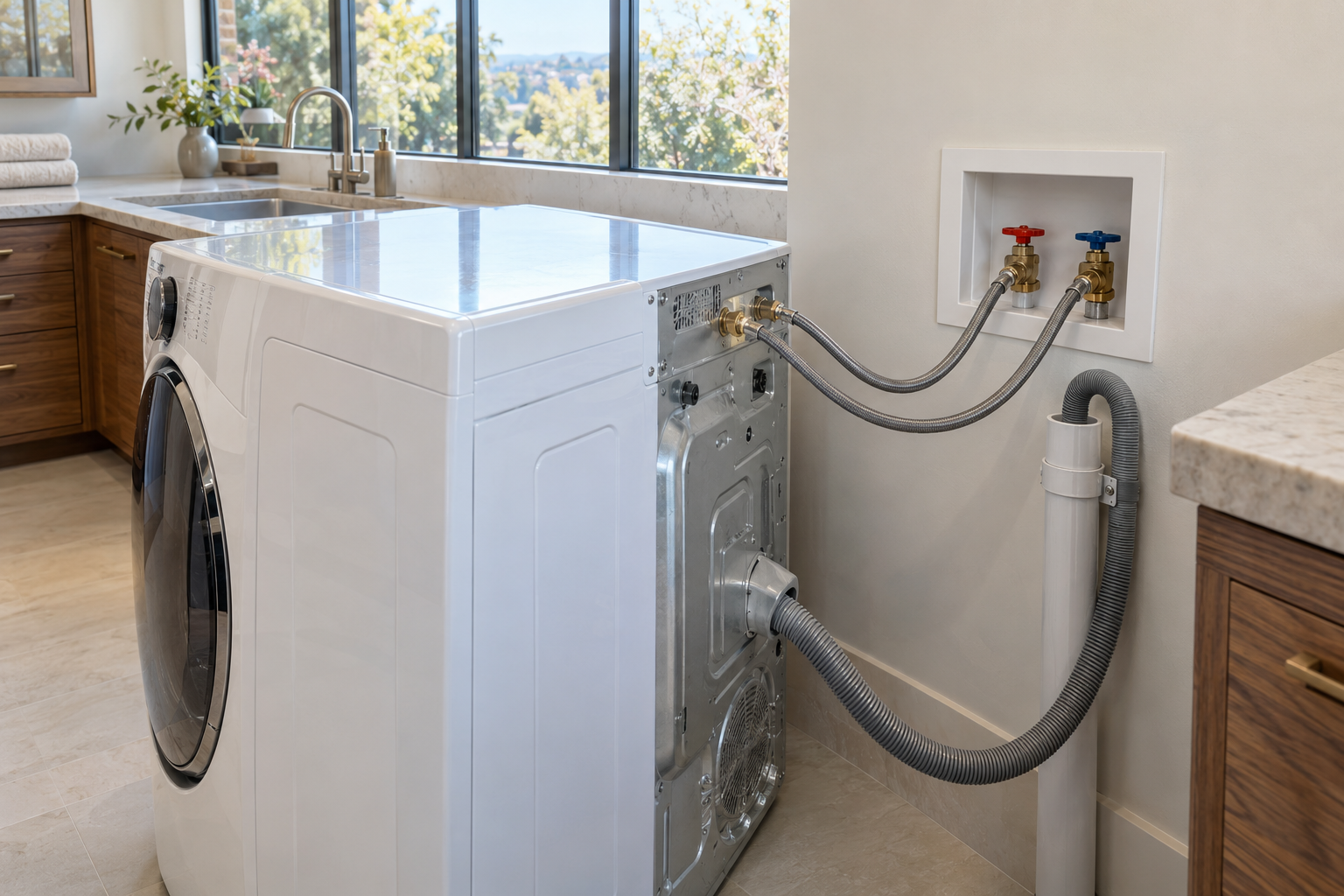

Separate hot and cold hoses connect the washer to accessible valves. The drain hose is secured in the open standpipe so discharge can enter the drainage system without an airtight hose-to-pipe seal.

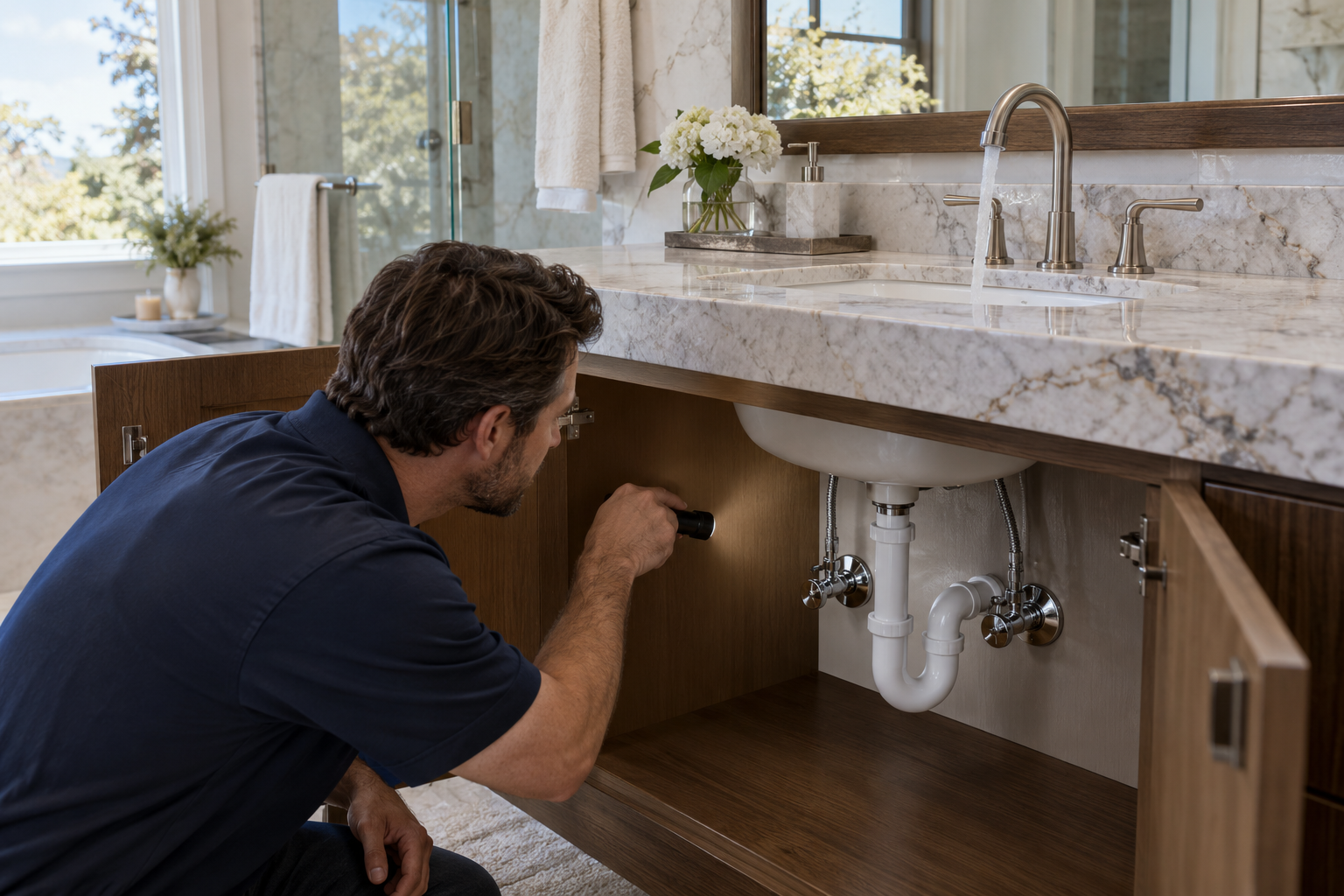

With the fixture operating, accessible water and drain joints are checked for leakage and the basin is observed for proper drainage. Final adjustments, cleanup, and the required inspection steps complete the installation process.
